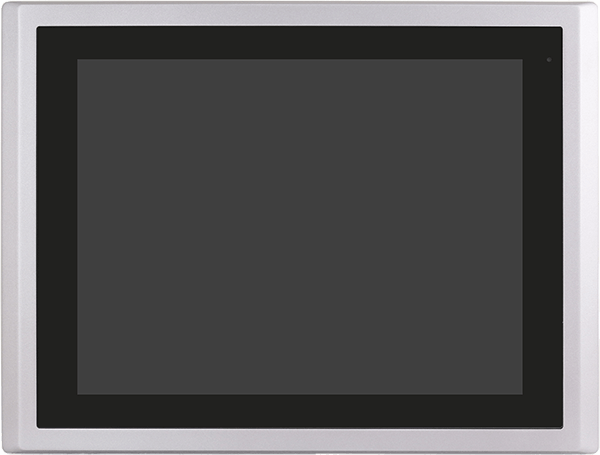

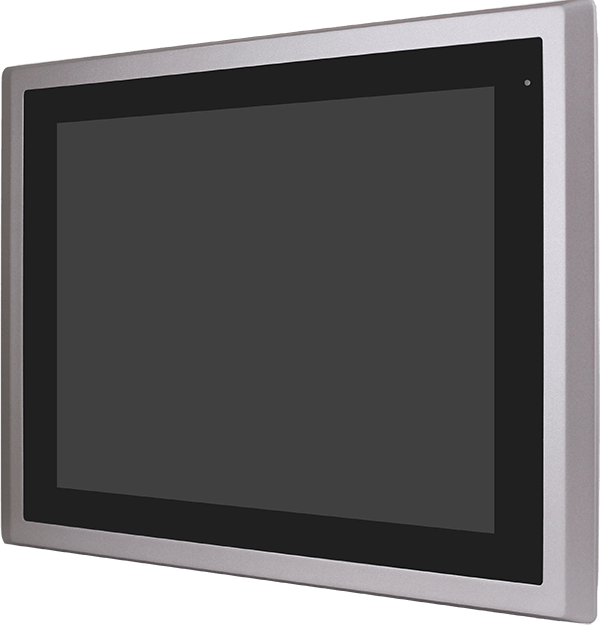

AR-PA815FL / AR-PA815PFL

15’’ TFT LCD, Intel Atom E3845/N2930, 2GB DDR3, Touch Screen, 2 x USB2.0 An Intel Atom E3845/N2930-based mainstream performance panel PC with accessible storage space and an IP65 waterproof front panel.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 15" Industrial Compact Size Panel PC
  • Flat front panel touch screen
  • Fanless design
  • Intel Bay Trail N2930(1.83GHz) CPU built-in/E3845(1.91GHz ) for option
  • Onboard 2GB DDR3L-1600MHz / 4GB(option)
  • 9~36VDC wide-ranging power input
  • IP65 compliant front panel
  • Optional projected capacitive touchscreen support 7H anti-scratch surface

Specifikace

 General PC Feature
 CPU  Onboard Intel Bay Trail N2930(1.83GHz) Processor / E3845(1.91GHz ) for option
 System Chipset  Intel Bay Trail SoC
 System Memory  Onboard 2GB DDR3L-1600MHz / 4GB(option)
 Display
 Display Type  15.6"
 Max. Resolution  1024 x 768
 Max. Color  262 K
 Luminance (cd/m²)  350
 Contrast Ratio  800 : 1
 View angle(H°/V°)  H:160° / V:145°
 Backlight Lifetime  50,000(hrs)
 Touch screen - Resistive Touch Window Type
 Type  Resistive Touch Windows
 Interface  USB
 Light Transmission(%)  Resistive Touch Windows: 80%
Touch screen - Projected Capacitive Type
Type  Projected Capacitive Touch(For P Model)
Interface  USB
Light Transmission(%)  Projected Capacitive Touch: 90%
 Storage
 HDD  1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible)
 Movable device  1 x SD card slot, up to 32GB

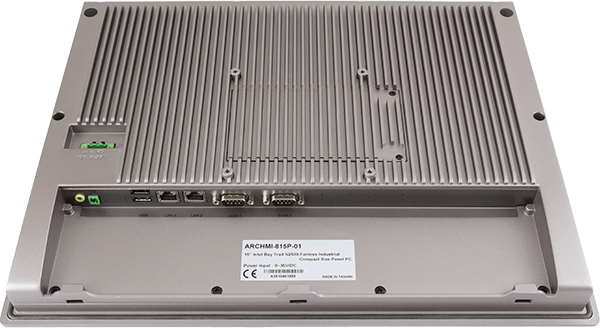

 I/O Port
 USB
 1 x USB 2.0 type A
 1 x USB 3.0 type A
 Serial/Parallel
 1 x RS-232 DB-9(COM2)
 1 x DB-9 RS-232/422/485 (Default RS-232)(COM1)
 Audio
 1 x Audio Line Out / 1 x HDMI Port (reserved, no printing)
 LAN
 2 x GbE LAN RJ-45
 Power
 1 x 3-pin Terminal Block DC Power input
 1 x 2-pin connector for power on/off button
 Option
 (Only for AR-PA815(P)FL, AR-PA817(P)FL)
 ● 2 x RS-232 DB-9
    1 x mini PCIe slot via TB-528C2ME1
    2 x CAN bus via TB-528CAN2 /
    2 x USB 2.0 type A Via TB-528U2
 ● 2 x USB 2.0 type A
    1 x mini PCIe slot
    1 x RS-232 DB-9 via TB-528C1U2P1 for AR-PA815(P)FL
 Expansion
 Onboard expansion bus
 1 x Internal mini PCIe slot (full size)
 Power Requirement
 Power Input
 9~36V
 Power Consumption  Max: 17.8W Max:17.8W(P)
Software
 OS Support
 Windows Embedded Compact 7, Windows Embedded Standard 7,
 Windows Embedded 8 Standard, Windows Embedded 8.1 Industry
 Mechanical
Color
 RAL 9007
IP Rating
 Aluminum Die-casting Front Bezel and Chassis
Mounting
 Panel Mounting, VESA 100 x 100
Dimension (mm)
 410 x 310 x 54.7
Net Weight (Kgs)
 4.4 kg
 Environmental
Operating temperature(°C)  0~50°C
Storage temperature(°C)  -20~60°C
Storage humidity  10 to 90% @ 40°C, non- condensing
Certification  CE, FCC Class A, CB, UL
Ordering Information
 AR-PA815(P)FL

 15.6” WVGA Fanless HMI barebone with Intel N2930 / E3845 CPU, 2GB DDR3
 RAM, Resistive touch screen, 9~36V DC input with adapter / Projected
 Capacitive touch screen, Aluminum chassis

Specifications are subject to change without notice.
