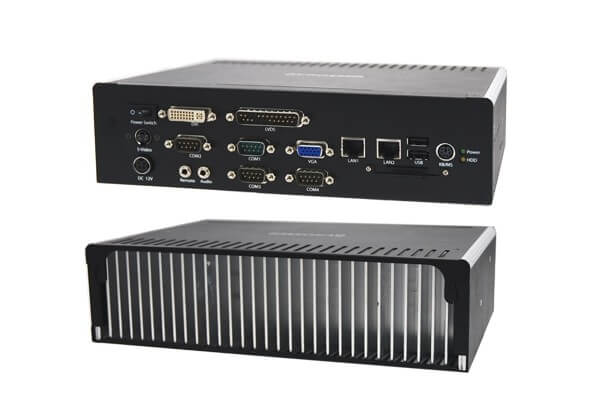

AR-ES5630FL

(Intel core 2 Duo, Celeron M)Fanless and Dustproof Intel GME965 Core 2 Duo Embedded Systém Feature Intel GME965 + ICH8M Support Core 2 Duo/Celeron M VGA/DVI/LVDS/TV-Out Dual Giga LAN PCI-104 Interface Anti-Shock 2.5" HDD Mounting Kit COM, USB2.

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Socket P support Intel Core 2 Duo/Celeron M
Chipset	Intel GME965 + Intel ICH8M
Front Side Bus	533/800MHz
Memory	1 x 200-pin SO-DIMM socket support 400/533/667MHz DDR2 SDRAM up to 2GB, 1GB pre-installed
Battery	Lithium Battery, 3V 220mAH
BIOS	Award
RTC	Yes
Hardware Monitoring	1. CPU voltage 2. CPU and System Temperature 3. System and CPU FAN speed 4. System Fan Speed Control
WatchDog Timer	Software programmable 1~255 sec./min.
OS	Windows Vista/XP/XP Embedded/CE, Linux

[Video/Display]

Video Controller	Intel GME965 Integrated GMA X3100 graphica controller
Video Interface	1 x VGA port, 1 x DVI port, 1 x Dual Channel 24-bit LVDS port, 1 x TV-Out port

[Ethernet]

Connector	2 x RJ45
Controller	Broadcom BCM5787 (Giga bps)

[Storage]

HardDisk Storage	Anti-shock drive bay for 2.5'' HDD
IDE	1 x EIDE (44-pin)
SATA	1 x SATA II port
SSD	1 x Compact Flash Type II socket

[I/O]

Serial Port	3 x RS-232, 1 x RS-232/422/485 (4 x DB9)
USB Port	4 x USB2.0 (2 x external port, 2 x onboard pin header)
Audio	Audio output
GPIO	8-bit Digital I/O
Keyboard/Mouse	PS/2 keyboard and mouse connector
Expansion Slot	1 x PCI-104 slot

[Mechanical & Environment]

Color	Black
Dimension	251mm x 165mm x 67mm (W x D x H)
Power Supply	96W adaptor with 9427A module, Lockable DC plug-in jack
Power Mode	Power Switch & Remote power switch jack
Indicator	Power LED, HDD LED
Operating Temp.	0~50℃ (32~122°F)
Storage Temp.	-20~70℃ (-4~158°F)
Safety	CE, FCC class A
Power Consumption	43.2W without external devices( T7400 / 1G / 80G HDD at CPU100% loading)
