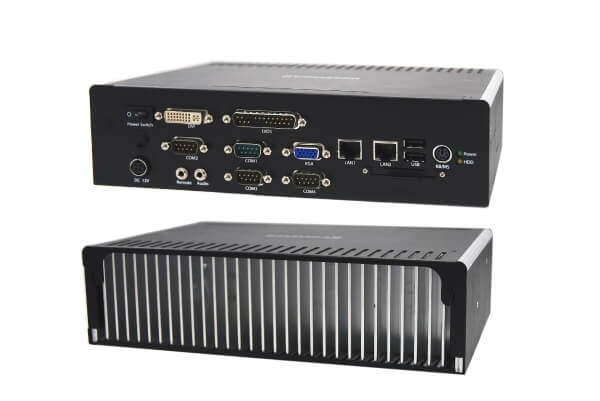

AR-ES5231FLET
Fanless and Dustproof Intel 910GMLE Celeron M extended temperature Embedded Systém
Feature
Support Onboard Celeron M 1G/600MHz
Fanless and Extended Temp, Design
1 x SO-DIMM Socket Support DDR SDRAM up to 2GB
VGA
PCI-104 Interface
Audio, USB2.0,
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
|
Specifications |
| [System] |
| Cpu |
Onboard Celeron M 600, onboard Celeron M 1G |
| Chipset |
Intel 910GMLE+ICH6M |
| Memory |
One SO-DIMM socket support 400MHz DDR2 SDRAM up to 1GB |
| Battery |
Lithium Battery, 3V 220mAH |
| BIOS |
AWARD |
| WatchDog Timer |
Software programmable 1~255 Sec. |
| OS |
Win XP / XP Embedded, WinCE, Linux |
|
| [Video/Display] |
| Video Controller |
Intel 82910GMLE integrated GMA 900 graphic controlle |
| Video Interface |
1 x VGA port |
|
| [Ethernet] |
|
| [Storage] |
| IDE |
1 x E-IDE |
| SSD |
1 x Compact Flash Type-II support |
|
| [I/O] |
| Serial Port |
4 x DB9 RS-232 connector |
| USB Port |
4 x USB 2.0 connector (2x from internal I/O by cables) |
| Audio |
Amplified audio output |
| GPIO |
8-bit GPIO |
| Keyboard/Mouse |
PS/2 Keyboard/Mouse connector |
| Expansion Slot |
1 x PCI -104 Slot |
|
| [Mechanical & Environment] |
| Dimension |
Depth:165mm, Width: 251mm, Height: 67mm |
| Power Supply |
60Watt AC to DC 12V power adaptor 110~240V AC input (150010072-G), Lockable DC plug-in jack, Power module AR-B9427 |
| Power Requirement |
9V to 32VDC input, 12VDC output power module |
| Operating Temp. |
-20 to 70 Degrees Celsius |
| Storage Temp. |
-20 to 80 Degree Celsius |
| Safety |
CE, FCC Class A |
|
|
|
