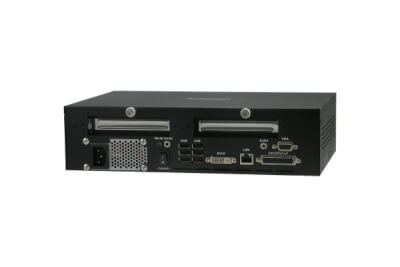

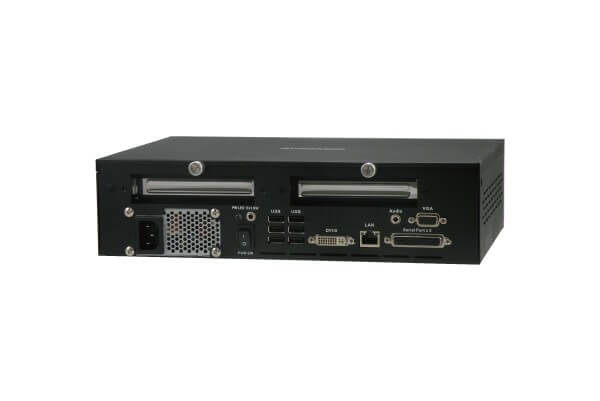

AR-ES0892
(Core 2 Duo)Intel Core 2 Duo Embedded Systém
Feature
1. Support Intel Core 2 Duo/Core Duo/Celeron M
2. Support Dual Channel DDR2up to 2GB
3. VGA/DVI/LVDS/TV-Out
4. 6 Serial Port (5 Port with Easy-Plug Connector)
5. PCI & PCI Express x16 Expansion
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
|
Specifications |
| [System] |
| Cpu |
Support Intel Core 2 Duo/Core Duo/Celeron M |
| Chipset |
Intel 945GME + Intel ICH7M |
| Front Side Bus |
533/667MHz |
| Memory |
2 x 200-pin SO-DIMM socket support 533/667MHz Dual Channel DDR2 SDRAM up to 4GB |
| BIOS |
Award |
| RTC |
System |
| Hardware Monitoring |
Yes |
| WatchDog Timer |
Software programmable 1~255 sec. |
| Security |
TPM 1.2, ProtectU |
| OS |
Windows XP/XP Embedded, Linux |
|
| [Video/Display] |
| Video Controller |
Intel 945G integrated GMA 950 graphic controller |
| Video Interface |
1 x VGA port, 1 x DVI port, 1 x Dual Channel 18-bit LVDS port, 1 x TV-Out (S- Video and Compose Video pin header) |
|
| [Ethernet] |
| Connector |
1 x RJ45 |
| Controller |
Intel 82573E (10/100Mbps) |
|
| [Storage] |
| IDE |
2 x IDE (40 & 44-pin) |
| SATA |
2 x SATA II port |
| SSD |
1 x Compact Flash socket |
|
| [I/O] |
| Serial Port |
5 x RS-232, 1 x RS-232/422/485 (1 x DB44 includes 5 serial port, 1 x DB9) |
| USB Port |
8 x USB2.0 (6 x external port, 2 x onboard pin header) |
| Audio |
Audio output (Line Out/Line In/Mic In) |
| GPIO |
8-bit Digital I/O |
| Keyboard/Mouse |
Onboard PS/2 keyboard and mouse pin header |
| Expansion Slot |
1 x PCI Express x16 slot, 1 x PCI slot |
|
| [Mechanical & Environment] |
| Construction |
Aluminum Housing |
| Dimension |
310mm x 210mm x 70mm (W x D x H) |
| Power Supply |
90~260V AC Input, 120W ATX power supply |
| Power Mode |
ATX |
| Operating Temp. |
0~50℃ (32~122°F) |
| Storage Temp. |
-20~80℃ (-4~176°F) |
| Relative Humidity |
0 to 90% @ 40℃, non-condensing |
|
|
|
