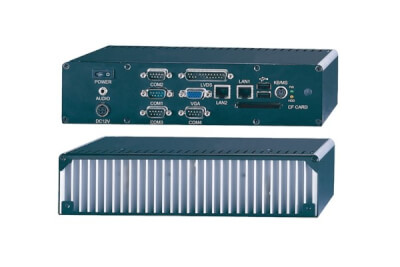

AR-ES0831FL

(Intel Pentium M/Celeron M)Fanless and Dustproof Pentium M Embedded Systém Feature Fanless and Dustproof Support Pentium/Celeron M VGA/LVDS Support Dual Display Dual 10/100 LAN Anti-Shock 2.5" HDD Mounting Kit Optional DC 9 to 32V Power Input

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Socket 478 support Intel Pentium M/Celeron M
Chipset	Intel 855GM + Intel ICH4
Front Side Bus	400MHz
Memory	1 x 200-pin SO-DIMM socket support 200/266/333MHz DDR SDRAM up to 1GB, 512MB pre-installed
Battery	Lithium Battery, 3V 220mAH
BIOS	Award
RTC	System
Hardware Monitoring	Yes
WatchDog Timer	Software programmable 1~63 sec.
OS	Windows XP/XP Embedded/2000/CE, Linux

[Video/Display]

Video Controller	Intel 855GM integrated Extreme Graphics Controller
Video Interface	1 x VGA port, 1 x Dual channel 18-bit LVDS port

[Ethernet]

Connector	2 x RJ45
Controller	Intel 82551QM (10/100Mbps)

[Storage]

HardDisk Storage	Anti-shock drive bay for 2.5'' HDD
IDE	1 x IDE (44-pin)
SSD	1 x Compact Flash socket

[I/O]

Serial Port	3 x RS-232, 1 x RS-232/422/485 (4 x DB9)
USB Port	6 x USB2.0 (2 x external port, 4 x onboard pin header)
Audio	Audio output
GPIO	8-bit Digital I/O
IrDA	Yes
Parallel Port	1 x LPT port
Keyboard/Mouse	PS/2 keyboard and mouse connector
Expansion Slot	1 x PCI-104 slot

[Mechanical & Environment]

Dimension	250mm x 161mm x 59mm (W x D x H)
Power Supply	Lockable DC plug-in jack
Power Requirement	AT:12V single voltage input
Operating Temp.	0~50℃ (32~122°F)
Storage Temp.	-20~80℃ (-4~176°F)
Safety	CE, FCC class A

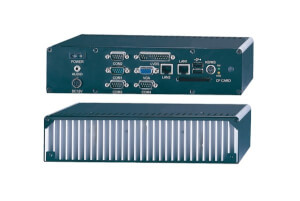

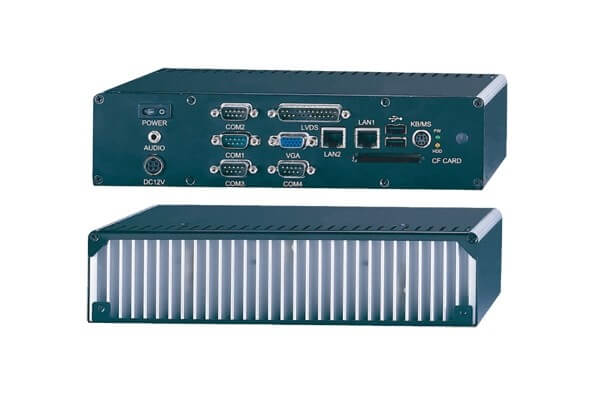

Fotogalerie

Ke stažení

Datasheet
