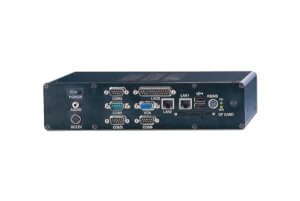

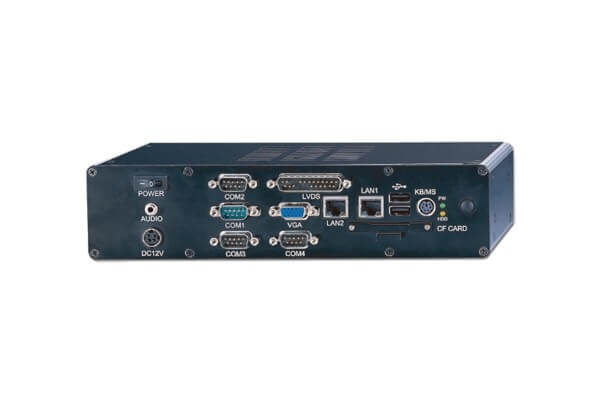

AR-ES0831
(Intel Pentium/Celeron M)Compact Embedded ystem Support Intel Pentium/Celeron M
Feature
Support Pentium/Celeron M
1 x SO-DIMM Socket Support DDR SDRAM
VGA/LVDS
2 x 10/100 LAN
PCI-104 Interface
COM, USB2.0, GPIO, IDE, CFII, Audio
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
|
Specifications |
| [System] |
| Cpu |
Socket 478 support Intel Pentium/Celeron M |
| Chipset |
Intel 855GM + Intel ICH4 |
| Front Side Bus |
400MHz |
| Memory |
1 x 200-pin SO-DIMM socket support 200/266/333MHz DDR SDRAM up to 1GB, 512MB pre-installed |
| Battery |
Lithium Battery, 3V 220mAH |
| BIOS |
Award |
| RTC |
System |
| Hardware Monitoring |
Yes |
| WatchDog Timer |
Software programmable 1~63 sec. |
| OS |
Windows XP/XP Embedded/2000/CE, Linux |
|
| [Video/Display] |
| Video Controller |
Intel 855GM integrated Extreme Graphics Controller |
| Video Interface |
1 x VGA port, 1 x Dual Channel 18-bit LVDS port |
|
| [Ethernet] |
| Connector |
2 x RJ45 |
| Controller |
Intel 82551QM (10/100Mbps) |
|
| [Storage] |
| HardDisk Storage |
Anti-shock drive bay for 2.5'' HDD |
| IDE |
1 x IDE (44-pin) |
| SSD |
1 x Compact Flash Type II socket |
|
| [I/O] |
| Serial Port |
3 x RS-232, 1 x RS-232/422/485 (4 x DB9) |
| USB Port |
6 x USB2.0 (2 x external port, 4 x onboard pin header) |
| Audio |
Audio Line Out |
| GPIO |
8-bit Digital I/O |
| IrDA |
Yes |
| Parallel Port |
1 x LPT port |
| Keyboard/Mouse |
PS/2 Keyboard and Mouse Connector |
| Expansion Slot |
1 x PCI-104 slot |
|
| [Mechanical & Environment] |
| Dimension |
250mm x 117mm x 59mm (W x D x H) |
| Power Supply |
90~264V AC input |
| Power Requirement |
AT:12V Single Voltage Input |
| Operating Temp. |
0~50℃ (32~122°F) |
| Storage Temp. |
-20~80℃ (-4~176°F) |
| Relative Humidity |
0 to 90% @ 40℃, non-condensing |
| Safety |
CE, FCC class A |
|
|
|
