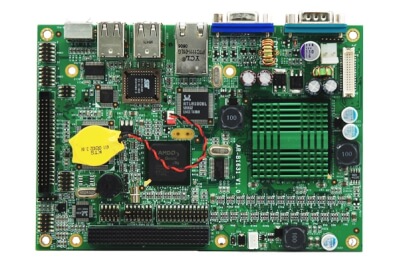

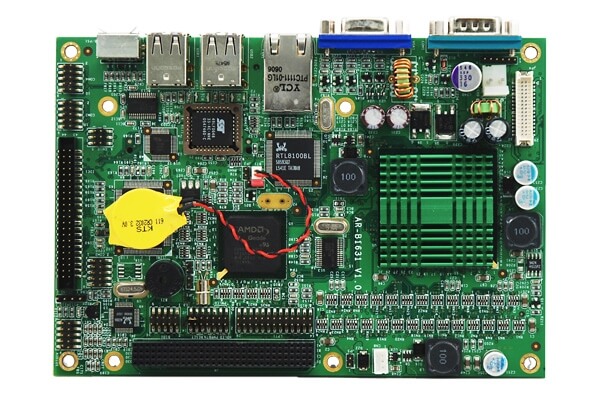

AR-B1631ET
AMD Geode LX 800 EPIC SBC wtih Extended Temperature Solution, VGA, 10/100 LAN, PCI-104, 4 x COM, 4 x USB2.0
Feature
1. AMD Geode LX 800 + CS5536
2. Extended Temperature Solution
3. Memory Support DDR 400MHz up to 1GB
4. VGA/LVDS
5. 4 x USB2.0, A
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
|
Specifications |
| [System] |
| Cpu |
AMD LX 800 500MHz |
| Chipset |
AMD Geode LX 800 + CS5536 |
| Memory |
1 x 200-pin SO-DIMM socket support 400MHz DDR SDRAM up to 1GB |
| Battery |
One time Li-Ion CR2032 220mAH for RTC |
| BIOS |
Award |
| OS |
Windows XP/XP Embedded/CE, Linux |
|
| [Video/Display] |
| Video Controller |
AMD Geode LX 800 with integrated 2D graphics engine |
| Video Interface |
1 x VGA (DB15), 1 x 18-bit LVDS (Onboard pin header) |
|
| [Ethernet] |
| Connector |
1 x RJ45 |
| Controller |
Realtek RTL8100B (10/100) |
|
| [Storage] |
| IDE |
1 x IDE (44-pin) |
| SSD |
1 x Compact Flash socket |
|
| [I/O] |
| Serial Port |
3 x RS-232, 1 x RS-232/422/485 (1 x DB9, 3 x onboard pin header) |
| USB Port |
4 x USB2.0 (4 x external port) |
| Audio |
AC'97 Stereo (MIC-In/Line-In/Line-Out) |
| GPIO |
8-bit Digital I/O |
| Parallel Port |
1 x LPT |
| Keyboard/Mouse |
PS/2 keyboard and mouse connector |
| Expansion Slot |
1 x PCI-104 slot |
|
| [Mechanical & Environment] |
| Dimension |
115mm X 165mm |
| Power Requirement |
DC 12V single power |
| Operating Temp. |
-40~75℃ (-40~167°F) |
| Storage Temp. |
-40~80℃ (-40~176°F) |
| Relative Humidity |
5 to 60% @ 75℃, non-condensing |
|
|
|
