AIV-QM97V1FL
Pasivně chlazené In-Vehicle Box PC Procesory Intel Broadwell
Základní informace
- Rugged fanless design
- Support Intel 5th generation Core i Broadwell U processors
- 2 x DDR3L SO-DIMMs, for up to 16GB
- Support CAN 2.0A/2.0B protocol and i-Button for driver ID
- HDMI & DVI-D output
- Wide variety of wireless communication options
- M.2 SSD & M.2 4G LTE support
Specifikace
| System |
| CPU | ● Intel Core i7 5650U 2.20GHz, 4M cache ● Intel Core i5 5350U 1.80GHz, 3M cache ● Intel Core i3 5010U 2.10GHz, 3M cache |
| Memory | 2 x DDR3L-1600MHz, SO-DIMM, up to 16GB(non-ECC) |
| Video |
| Graphic Controller | Intel® HD Graphics 6000 |
| Video Memory | DVMT |
| Video Interface | ● 1 x HDMI type A connector ● 1 x DVI-D connector |
| Storage |
| SATA | ● 1 x SATA III port with power connector |
| SSD | ● 1 x M.2 SSD |
| Disk Bay | ● 1 x swappable 2.5" SSD bay with Anti-vibration / Anti-shock solution |
| Communication |
| Ethernet | ● 2 x Intel GbE chip via RJ-45 connector (Intel i210IT) |
| USB | ● 2 x USB 3.0 ● 2 x USB 2.0 |
| Serial Port | ● 2 x RS232 (2 x DB9) ● 1 x RS422/RS485 (Select by GPIO) |
| I/O |
| Expansion slot | ● Mini PCIe Socket supported for WiFi+BT. |
| GPIO | ● 8-bit GPIO (4 In, 4 Out) |
| Antenna Hole | ● 1 x SMA for GPS ● 1 x SMA for 4G LTE ● 2 x SMA for WiFi ● 1 x SMA for Bluetooth |
| SIM | SIM Slot x 1, SIM card changeable without opening case |
| Security | Support I-Button for driver ID |
| CAN BUS | Support CAN 2.0A/2.0B protocol |
| Others Feature |
| Audio | Audio Codec (Line-out & MIC) |
| Hardware Monitoring | CPU voltage and temperature |
| WatchDog Time | 0~255 sec. software programmable |
| Indicator | Power / HDD/ Stauts LED |
| Power Requirement |
| Power Input | 9~32 V (+/-5%) single voltage input, 3 poles terminal block |
| Software |
| OS Support | ● Windows 7 ● Windows 8.1 ● Fedora 21 ● Ubuntu 15.04 |
| Mechanical & Environment |
| Thermal Design | Fanless |
| Chassis Material | Metal SPGC (Black printing color)+ Aluminum heatsink |
| Vibration | IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD |
| Shock | IEC 60068-2-27, 50G 500m/s2 11MS, Operating with SSD |
| Dimension | 290mm x 190mm x 45mm |
| Weight | 4 kg |
| Operating Temp. | 0~60°C |
| Storage Temp. | -40~80°C |
| Relative Humidity | 0~90% @ 40°C, non-condensing |
| Safety | CE, FCC class B, E-Mark |
| Smart In-Vehicle Power Management |
| O/S Anti-Crash | Smart O/S boot/shut-down control by power subsystem |
| System boot / Shut-down delay |
Delay time from 0 seconds to 60 minutes setting in BIOS |
| Power on/off switches | ● System power switch by remote cable switch ● System power input serial connection to car battery and ignition switch |
| Car battery protection | Low battery voltage monitoring and configurable auto shutdown low battery voltage level |
| Ordering Information |
| AIV-QM97V1FLCi3 | AIV-QM97V1FLCi3 with Intel Core i3 5010U 2.20GHz, 4M cache |
| AIV-QM97V1FLCi5 | AIV-QM97V1FLCi5 with Intel Core i5 5350U 1.80GHz, 3M cache |
| AIV-QM97V1FLCi7 | AIV-QM97V1FLCi7 with Intel Core i7 5650U 2.10GHz, 3M cache |

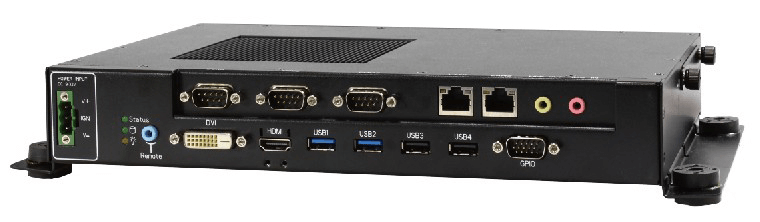

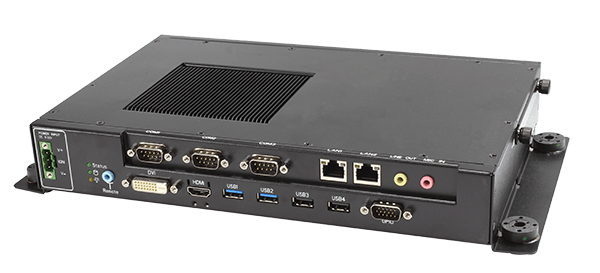

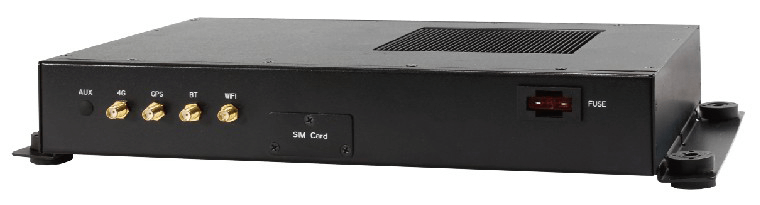

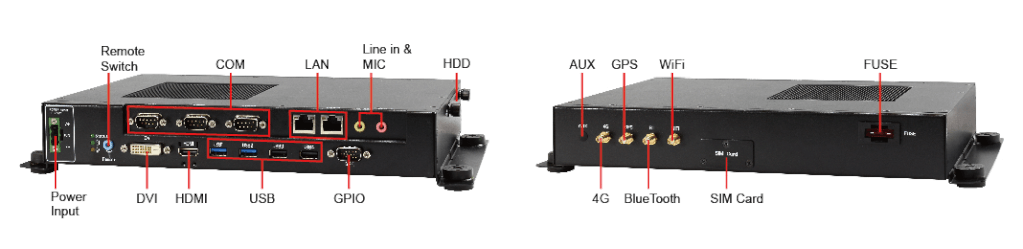

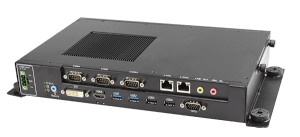

Fotogalerie
