AIV-HM76V1FL
Pasivně chlazené In-Vehicle Box PC kompaktních rozměrů. Mobile Intel® HM76 Express Chipset
Základní informace
- Rugged fanless design
- Integrated Intel 3rd generation Core i ULV processors with HM76 chipset
- 2 x DDR3 SO-DIMM, up to 16GB
- Support CAN 2.0A/2.0B protocol and i-Button for driver ID
- VGA/HDMI/ output
- Variety Wireless Communication
- Combo connector to simplify touch monitor installation
Specifikace
| System |
| CPU | ● Intel Core i7 3517UE 1.70GHz, 4M cache ● Intel Core i3 3217UE 1.60GHz, 3M cache ● Intel Celeron 1047UE 1.40GHz, 2M cache |
| Chipset | Intel HM76 |
| Memory | 2 x DDR3L-1333/1600MHz, SO-DIMM, up to 16GB |
| Video |
| Graphic Controller | Integrated in Processors |
| Video Memory | DVMT |
| Video Interface | ● 2 x HDMI type A connector ● 1 x dedicated combo connector (VGA/USB/audio/power) |
| Storage |
| SATA | ● 1 x SATA III port with power connector |
| CF | ● 1 x Compact Flash Type I/II slot support UDMA 33 |
| Disk Bay | ● 1 x swappable 2.5" HDD bay with Anti-vibration / Anti-shock solution |
| Communication |
| Ethernet | ● 2 x Intel GbE chip via RJ-45 connector |
| USB | ● 3 x USB 3.0 connector & 2 x JST pin header |
| Serial Port | ● 3 x RS232 ● 1 x 422/485 (Select By GPIO) |
| I/O |
| Expansion slot | ● 2 x mini PCIe (For Optional 3.5G / Wifi module only) |
| GPIO | ● 8-bit GPIO (4 In, 4 Out) |
| Antenna Hole | ● 1 x SMA for GPS ● 1 x SMA for 3.5G ● 2 x SMA for WiFi ● 1 x SMA for Bluetooth |
| SIM | SIM Slot x 1, SIM card changeable without opening case |
| Security | Support I-Button for driver ID |
| CAN BUS | Support CAN 2.0A / 2.0B protocol |
| Others Feature |
| Audio | Audio Codec (Line-out & MIC) |
| Hardware Monitoring | CPU voltage and temperature RTC battery voltage (Voltage, 12V/5V/3.3V) |
| WatchDog Time | 1~255 sec. software programmable |
| Indicator | Power / HDD/ Stauts LED |
| Power Requirement |
| Power Input | 9~32 V (+/-5%) single voltage input, 3 poles terminal block |
| Out Put Voltage | 12V DC, 120W |
| Software |
| OS Support | ● Windows 7(32/64 bit) ● Windows Embedded(32 bit) ● Fedora 17(32/64 bit) ● Ubuntu 12.10(32/64 bit) |
| Mechanical & Environment |
| Thermal Design | Fanless |
| Chassis Material | Sheet metal(Sliver, printing color with Acrosser logo) |
| Vibration | IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD |
| Shock | IEC 60068-2-27, 50G 500m/s2 11MS, Operating with SSD |

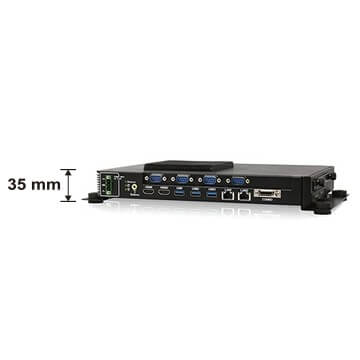

| Dimension | 290mm x 190mm x 35mm |
| Weight | 3 kg |
| Operating Temp. | 0~60°C |
| Storage Temp. | -40~80°C |
| Relative Humidity | 0~90% @ 40°C, non-condensing |
| Safety | CE, FCC class B , E-Mark |
| Smart In-Vehicle Power Management |
| O/S Anti-Crash | Smart O/S boot/shut-down control by power subsystem |
| System boot / Shut-down delay |
Delay time from 0 seconds to 60 minutes setting in BIOS |
| System boot fail retry | 3 times boot fail retry |
| Power on/off switches | ● System power switch by remote cable switch ● System power input serial connection to car battery and ignition switch |
| Car battery protection | Low battery voltage monitoring and configurable auto shutdown low battery |
| Option |
| 100070085 | Sierra MC8705 with RF cable, Cable Antenna |
| 100070067 | WIESON ZYM-5020,RF Cable ,Cable Antenna (L=5M) |
| 100070086 | Intel Centrino N6205 802.11 a/b/g/n WiFi module, RF Cable, Antenna x 2 |
| 100070066 | Qcom QBTM400-01,RF Cable, Antenna |
| Ordering Information |
| AIV-HM76V1FLCi7 | AIV-HM76V1FL with Intel Core i7 3517UE 1.70GHz, 4M cache |
| AIV-HM76V1FLi31 | AIV-HM76V1FL with Intel Core i3 3217UE 1.60GHz, 3M cache |
| AIV-HM76V1FLCE1 | AIV-HM76V1FL with Intel Celeron 1047UE 1.40GHz, 2M cache |

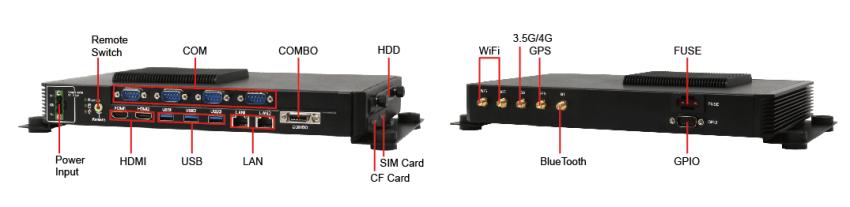

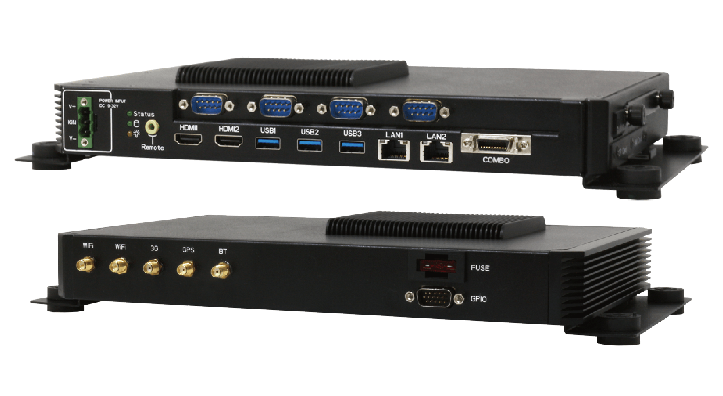

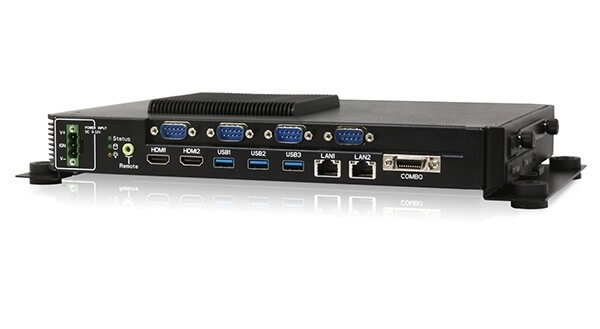

Fotogalerie
