AIV-HM76V0FL

Advanced Innovative Fanless In-Vehicle computer with Intel 3rd Generation Core i platform

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

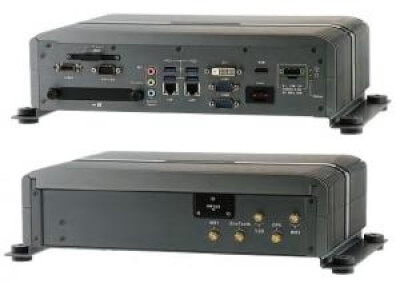

AIV-HM76V0FL is a fanless in-vehicle computer features Intel Core i7 technology. AIV-HM76V0FL adopts Acrosser’s expertise of design for in-vehicle applications. These designs include smart power management, high efficient thermal module, and diversity of integrated communication technology such as CAN bus, Wi-Fi, 3.5G wireless WAN, Bluetooth and GPS.

  1. FCPGA 988 socket support Intel 3rd Generation Core i7/i5 and Celeron processors up to 45W i7-3820QM
  2. Fanless thermal design and anti-vibration industrial design
  3. HDMI/DVI/VGA video outputs
  4. Combo connector for Acrosser’s In-Vehicle monitor
  5. 4 external USB 3.0 ports
  6. CAN bus 2.0 A/B
  7. Wi-Fi, Bluetooth, 3.5G, GPS
  8. One-wire (i-Button) interface
  9. 9-32 VDC power input
  10. -20 to 60 degree C operating temperature

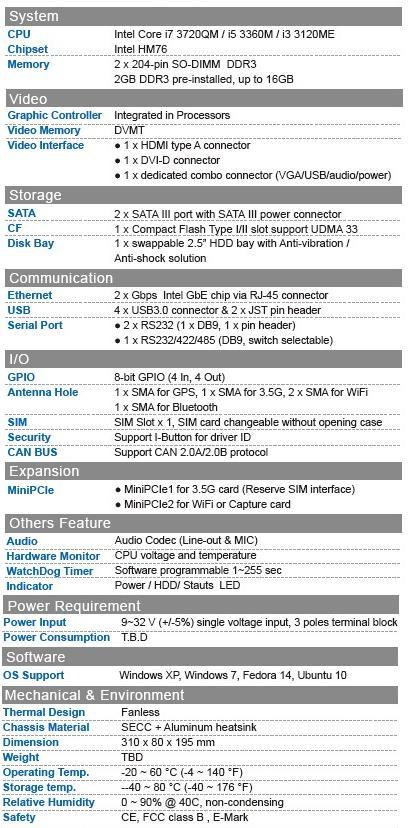

Specifikace
