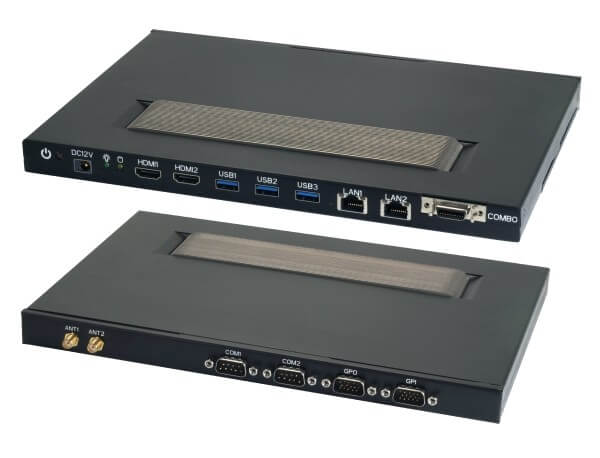

AES-HM76Z1FL

Fanless and Ultra Slim Intel HM76 Embedded Computer, AES-HM76Z1FL supports Intel Ivy Bridge CPU, with 2 x HDMI, 4 x COM, 3 x USB3.0, 2 x GbE, 1 x Mini PCIe, 1 x SIM

Currently AES-HM76Z1FL supports Intel core i7, core i3 and Celeron CPU to satisfy each individual industry. With a height of only 20 mm, this ultra-slim embedded PC is suitable for mobile use, while delivering high computing performance.

1. Fanless and ultra slim design
2. Support Intel Ivy Bridge CPU with HM76 chipset
3. 2 x DDR3 SO-DIMM, up to 16GB
4. Support SATA III and CF storage
5. HDMI/VGA/USB/Audio/GPIO output interface
6. Serial ports by RS-232 and RS-422/485
7. 2 x GbE, 1 x SIM, and 1 x Mini PCIe(for3G/WiFi)
