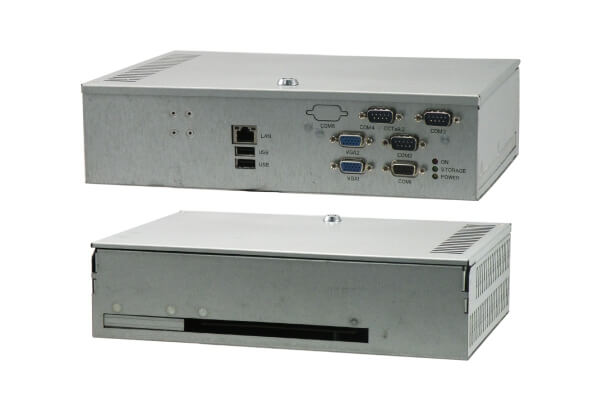

ACE-S5692FL

Intel GME965 Fanless and Gaming System with 8 Liner (72-pin) and Italian JAMMA Interface Feature 1. GME965 with Core 2 Duo/Celeron M 2. 30-bit Interruptible Digital Input 3. 27-bit High Current Output 4. 8 Liner and Italian JAMMA Interface 5. Dua

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Detail

Specifications
[System]
Cpu  Support Intel Core 2 Duo & Celeron M
Chipset  Intel GME965 + ICH8M
Front Side Bus  533/800MHz
Memory  2 x 240-pin DIMM socket support 533/667MHz Dual Channel DDR2 SDRAM up to 4GB, 1GB pre-installed
RTC  1 x system RTC and 1 x secured RTC
Hardware Monitoring  1. CPU voltage. 2. CPU and system temperature. 3. System and CPU FAN speed. 4. System Fan speed control.
WatchDog Timer  Software programmable 1~255 sec.
OS  Windows XP/XP Embedded, Linux
[Video/Display]
Video Controller  Intel GME965 integrated X3100 graphic controller
Video Interface  2 x VGA port
[Ethernet]
Connector  1 x RJ45
Controller  Intel 82574L (Giga bps)
[Storage]
SATA  2 x SATA port
SSD  1 x Compact Flash Type II socket (Support UDMA)
[I/O]
Serial Port  5 x RS-232 (4 x DB9, 1 x onboard pin header). COM3 & COM4 configurable as ccTalk
USB Port  6 x USB2.0 (2 x external, 4 x internal)
[Mechanical & Environment]
Dimension  278.3mm x 189.8mm x 72.21mm (W x D x H)
Power Requirement  5V and 12V input to golden finger
Indicator  Power LED, Storage LED, Power_In LED
Operating Temp.  0~50℃ (32~122°F)
Storage Temp.  -20~70℃ (-4~158°F)
Safety  CE, FCC class A
[Other Features]


Audio
-Codec
Stereo (Optional 2.1 Channel)

-Amplifier  2 x 6 Watts amplifier

Gaming Function
-I/O Interface  8 Liner (72-pin) and Italian JAMMA interface

-Digital Input  25 x optical isolated input, 5 x TTL input

-Digital Output  3 x 1000 mA and 24 x 500 mA digital output

-GPIO  28-bit programmable GPIO


-Timer  4 x 16-bit interruptible timer

-Readable DIP Switch
2 x 8-bit DIP switch

-Battery Backuped SRAM  2 x 512KB

-EEPROM  1K Bytes

-Intrusion Logger  1 x chassis intrussion switch + 6 bits on golden fingers

-Random Number Generator
16-bit

-Security  iButton socket and ProtectU (Optional TPM2.0)
