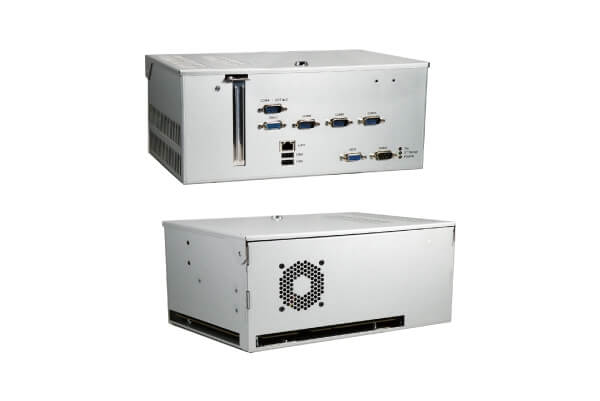

ACE-S5292FL

Fanless and Dustproof Pentium M Gaming System with Dual VGA Feature 1. 915GME with Pentium M/Celeron M 2. 29-bit Interruptible Digital Input 3. 43-bit High Current Output 4. JAMMA & 72-pin Golden Finger Interface 5. Dual 256KB Battery Backup SRAM

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Support Intel Core 2 Duo & Celeron M
Chipset	Intel GME965 + ICH8M
Front Side Bus	533/800MHz
Memory	2 x 240-pin DIMM socket support 533/667MHz Dual Channel DDR2 SDRAM up to 4GB, 1GB pre-installed
RTC	1 x system RTC and 1 x secured RTC
Hardware Monitoring	1. CPU voltage. 2. CPU and system temperature. 3. System and CPU FAN speed. 4. System Fan speed control.
WatchDog Timer	Software programmable 1~255 sec.
OS	Windows XP/XP Embedded, Linux

[Video/Display]

Video Controller	Intel GME965 integrated X3100 graphic controller
Video Interface	2 x VGA port

[Ethernet]

Connector	1 x RJ45
Controller	Intel 82574L (Giga bps)

[Storage]

SATA	2 x SATA port
SSD	1 x Compact Flash Type II socket (Support UDMA)

[I/O]

Serial Port	5 x RS-232 (4 x DB9, 1 x onboard pin header). COM3 & COM4 configurable as ccTalk
USB Port	6 x USB2.0 (2 x external, 4 x internal)

[Mechanical & Environment]

Dimension	278.3mm x 189.8mm x 72.21mm (W x D x H)
Power Requirement	5V and 12V input to golden finger
Indicator	Power LED, Storage LED, Power_In LED
Operating Temp.	0~50℃ (32~122°F)
Storage Temp.	-20~70℃ (-4~158°F)
Safety	CE, FCC class A

[Other Features]

Audio
-Codec Stereo (Optional 2.1 Channel)

-Amplifier 2 x 6 Watts amplifier

Gaming Function
-I/O Interface 8 Liner (72-pin) and Italian JAMMA interface

-Digital Input 25 x optical isolated input, 5 x TTL input

-Digital Output 3 x 1000 mA and 24 x 500 mA digital output

-GPIO 28-bit programmable GPIO

-Timer 4 x 16-bit interruptible timer

-Readable DIP Switch 2 x 8-bit DIP switch

-Battery Backuped SRAM 2 x 512KB

-EEPROM 1K Bytes

-Intrusion Logger 1 x chassis intrussion switch + 6 bits on golden fingers

-Random Number Generator 16-bit

-Security iButton socket and ProtectU (Optional TPM2.0)

Fotogalerie

Ke stažení

Datasheet
