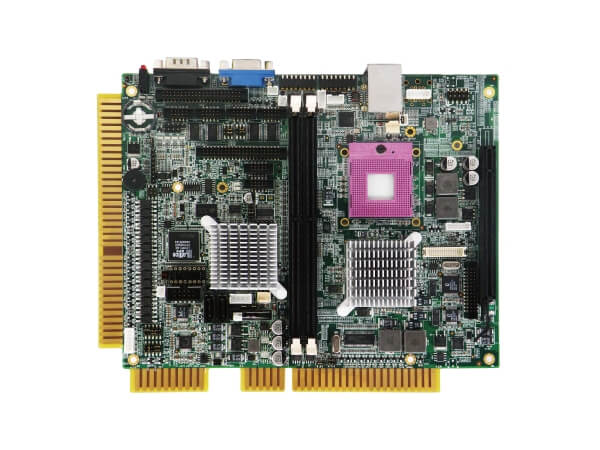

ACE-B5692

Intel GME965 All-in-One Gaming Board with 8 Liner (72-pin) and Italian JAMMA Interface Feature 1. GME965 with Core 2 Duo/Celeron M 2. 30-bit Interruptible Digital Input 3. 27-bit High Current Output 4. 8 Liner and Italian JAMMA Interface 5. Dual

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Support Intel Core 2 Duo/Celeron M
Chipset	Intel GME965 + ICH8M
Front Side Bus	533/800MHz
Memory	2 x 240-pin DIMM socket support 533/667MHz Dual Channel DDR2 SDRAM up to 4GB
Battery	One CR2032 (220mAh) for system RTC, Two re-chargable for SRAM, Second RTC, Intrusion Logger
BIOS	Award
RTC	1 x system RTC and 1 x secured RTC
WatchDog Timer	Software programmable 1~255 sec.
OS	Windows XP/XP Embedded, Linux

[Video/Display]

Video Controller	Intel GME965 integrated X3100 graphic controller
Video Interface	2 x VGA (1 x DB15, 1 x onboard pin header-optional DVI-I)

[Ethernet]

Connector	1 x RJ45 with LED
Controller	Intel 82574L (Giga bps)

[Storage]

SATA	2 x SATA port
SSD	1 x Compact Flash socket Type II (support UDMA)

[I/O]

Serial Port	3 x RS-232 (1 x DB9, 2 x onboard pin header). 2 x ccTalk/RS-232 (2 x onboard pin header, 1 x on JAMMA)
USB Port	6 x USB2.0 (2 x external port, 4 x onboard pin header)
Expansion Slot	1 x PCI Express x16 slot

[Mechanical & Environment]

Dimension	171mm x 214mm
Power Requirement	5V and 12V input to golden finger
Indicator	HDD and Power LED
Operating Temp.	0~60℃ (32~140°F)
Storage Temp.	-20~80℃ (-4~176°F)
Relative Humidity	0 to 90% @ 40℃, non-condensing
Safety	CE, FCC class A

[Other Features]

Audio
-Codec Stereo (Optional 2.1 Channel)

-Amplifier 2 x 6 Watts amplifier

Gaming Function
-I/O Interface 8 Liner (72-pin) and Italian JAMMA interface

-Digital Input 25 x optical isolated input, 5 x TTL input

-Digital Output 3 x 1000 mA and 24 x 500 mA digital output

-GPIO 28-bit programmable GPIO

-Timer 4 x 16-bit interruptible timer

-Readable DIP Switch 2 x 8-bit DIP switch

-Battery Backuped SRAM 2 x 512KB

-EEPROM 1K Bytes

-Intrusion Logger 1 x chassis intrussion switch + 6 bits on golden fingers

-Random Number Generator 16-bit

-Security iButton socket and ProtectU (Optional TPM2.0)
