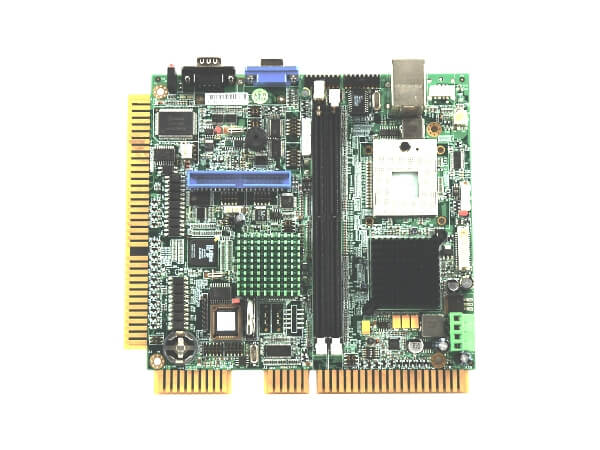

ACE-B5290

Intel 915GME All-in-One Gaming Board Feature 1. 915GME with Pentium M/Celeron M 2. 29-bit Interruptible Digital Input 3. 43-bit High Current Output 4. JAMMA & 72-pin Golden Finger Interface 5. Dual 256KB Battery Backup SRAM with Battery Low Event

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Socket 478 support Intel Pentium M/Celeron M
Chipset	Intel 915GME + ICH6M
Front Side Bus	400/533MHz
Memory	2 x 240-pin DIMM socket support 400/533MHz Dual Channel DDR2 SDRAM up to 2GB
Battery	One CR2032 (220mAh) for system RTC, Two re-chargable for SRAM, Second.RTC, Intrusion Logger
BIOS	Award
RTC	1 x system RTC and 1x secured RTC
Hardware Monitoring	Yes
WatchDog Timer	Software programmable 1~255 sec.
OS	Win XP/XP Embedded, Linux

[Video/Display]

Video Controller	Intel 915GME integrated GMA 900 graphic controller
Video Interface	1 x VGA (DB15), 1 x Dual Channel 18-bit LVDS (Onboard pin header)

[Ethernet]

Connector	1 x RJ45 with LED
Controller	Intel 82562ET PHY (10/100Mbps)

[Storage]

IDE	1 x IDE (40-pin)
SATA	2 x SATA 1 port (Option)
SSD	1 x Compact Flash socket Type II (support UDMA)

[I/O]

Serial Port	3 x RS-232 (1 x DB9, 2 x onboard pin header). 2 x ccTalk/RS-232
USB Port	6 x USB2.0 (2 x external port, 4 x onboard pin header)
Keyboard/Mouse	PS/2 Keyboard and Mouse Pin header

[Mechanical & Environment]

Dimension	170 x 184.5 mm
Power Requirement	5V and 12V input to Golden finger
Indicator	HDD and Power LED
Operating Temp.	0~60℃ (32~140°F)
Storage Temp.	-20~80℃ (-4~176°F)
Relative Humidity	0 to 90% @ 40℃, non-condensing
Safety	CE
Power Consumption	40W without external devices

[Other Features]

Storage
-DOM 1 x bNAND Angle 1 Type

Audio
-Codec AC'97 Stereo

-Amplifier 6 Watts per channel. Type D amplifier

Gaming Function
-I/O Interface JAMMA & 72-pin Golden Finger Interface

-Digital Input 29 x optical isolated input

-Digital Output 43 x 500 mA digital output

-Timer 4 x 16-bit interruptible timer

-Readable DIP Switch 2 x 8-bit DIP switch

-Battery Backuped SRAM 2 x 256KB (Optional 2 x 512KB)

-EEPROM 1K Bytes

-Intrusion Logger 1 x chassis intrussion switch + 5 bits on golden fingers

-Random Number Generator 16-bit

-Security iButton socket and ProtectU
