ABOX-5210G-M12X

Intel Gen 10th 10 Cores Xeon, i9 CPU w/ 10 x GbE (2 x RJ45 and 8 x M12 X Coded Connectors)/ 3 x COM/ 3 x DP/ 2 x HDMI/ 4 x USB 3.2 Gen 1/ NVIDIA® GeForce GTX GPU/ 9-48V Input AI GPU Computing

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Intel GEN 10th 10 Cores Xeon W-1290TE / i9-10900TE
  • NVIDIA® GeForce GTX GPU
  • 8 x DI, and 4 x DO and 3 x RS-232/422/485
  • 1 x M.2 B key, 1 x M.2 A-E key & 3 x MiniPCIe expansion slots
  • Dual Hot Swappable SATA Storage RAID 0,1,5
  • 9-48V DC Input and Operating Temp.: -40~70°C
  • 2 x RJ45 Ports and 8 x M12 X Coded Connectors for GbE (Optional 8 x PoE)
  • Rolling Stock EN 50155 and EN 50121-3-2 certified

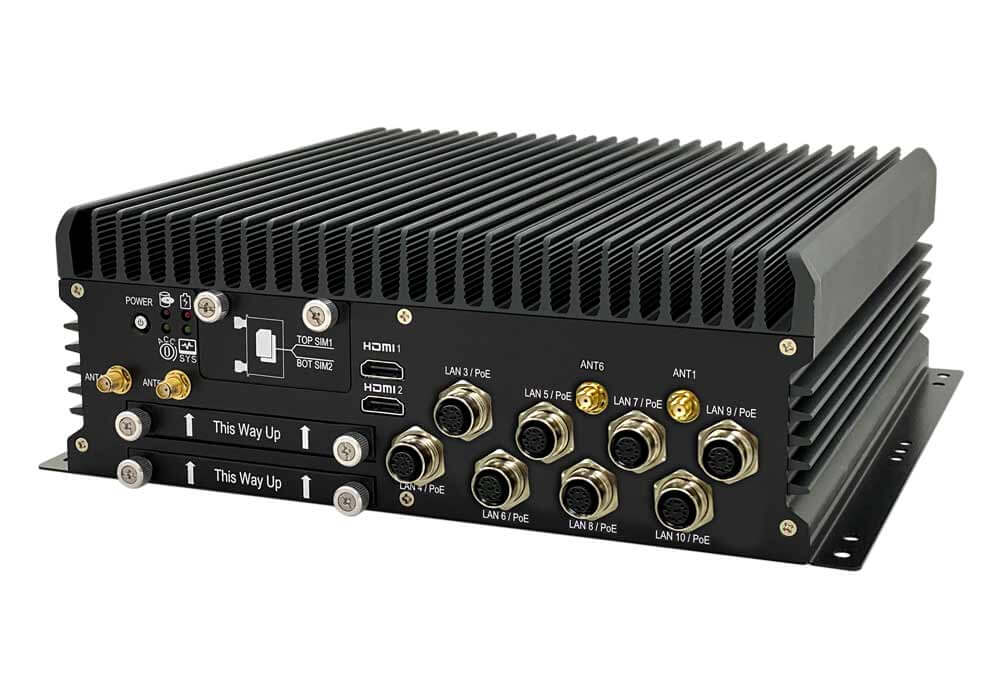

The ABOX-5210(G)-M12X Fanless Box Computer is powered by Intel GEN 10th 10 Cores Xeon W-1290TE / i9-10900TE AI GPU Computing. Specifically designed for railway rolling stock applications, it guarantees reliable performance, withstanding environmental disturbances such as severe shock and vibration in railway vehicle applications. ABOX-5210(G)-M12X features 8 x M12 X Coded Connectors for GbE and certified Rolling Stock EN50155 & EN50121-3-2 that cater to rolling stock’s application including traffic safety systems, passenger information systems, broadcasting systems as well as surveillance systems and more. Furthermore, with the new Intel Gen 10 Comet Lake and NVIDIA® GeForce GTX 1650 or GTX 1060 technology’s outstanding performance, ABOX-5210(G)-M12X can effectively support smart public transit systems, offering solutions to enhance the operational efficiency of railways and railway station management.

Specifikace

CPU Intel Gen10 Xeon W-1290TE (20M Cache 2.0GHz up to 4.6GHz)*
Intel Gen10 Core i9-10900TE (20M Cache 2.0GHz up to 4.5GHz)
Intel Gen10 Core i7-10700TE (16M Cache 2.0GHz up to 4.4GHz)
Intel Gen10 Core i5-10500TE (12M Cache 2.3GHz up to 3.7GHz)
Intel Gen 10 Core i3-10100TE (6M Cache 2.3GHz up to 3.6GHz)
Intel Gen10 Core G5900TE (4M Cache 3.0GHz)
*Use only with Intel W480E
Chipset Q470E / W480E
Memory 2 x DDR4 2666/2933 MHz SO-DIMM up to 64GB (Optional ECC support with Xeon W-1290TE)
LAN Chipset 9 x Intel i210-AT and 1 x i219LM (support iAMT) Gb/s Ethernet Controllers Onboard Support PXE and WOL
Watchdog 1 ~ 255 Level Reset
TPM 2.0
Serial Port 3 x RS 232/422/485 (option additional 1 x RS 232/422/485)
USB Port 4 x USB 3.2 Gen 1x1 Ports
LAN 2 x RJ45 Ports and 8 x M12 X coded connectors for GbE (Optional with 8 x POE total Max.120W)
Video Port 3 x DP (Intel built-in GPU), 2 x HDMI Ports (MXM graphics)
DIO Port 8 xDI (5~48VDC) and 4 x DO (5VDC, 100mA)
Audio 1 x Line-out, 1 x Line-in and 1 x Mic-in
Expansion Bus

2 x Full Mini-PCle Slots
1 x Full Mini-PCIe Slot w/ USB interface only for WWAN sharing 2 x SIM Card Sockets with M.2 B Key 3042 slot
1x M.2 A-E Key 2230 slot, 1 x M.2 B Key 3042 slot w/ 2 x SIM Card Sockets for WWAN

MXM Graphics NVIDIA® GeForce GTX 1650 GPU (896 CUDA Cores) w/4GB GDDR5
Max Resolution (HDMI) : 3840x2160@60Hz
Built-in Graphics Intel® UHD Graphics 630
Max Resolution (DP) : 4096x2304@60Hz
Storage 2 x 2.5" Drive Bay for SATA Type HDD/SSD RAID 0, 1, 5
1 x M.2 M key 2280 slot supports NVMe and SATA SSD
* Thermal heatsink is required for M.2 storage. Please contact sales window for more information.
Power Input 9V -48V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software and BIOS
Battery Backup (Option) Internal Battery Kit for 10 Mins Operating (P/N: BAT-5200 kit, Operating Temp. -20 ~ 60°C)
Dimensions (LxWxH) 260 x 250 x 95 mm
Mounting Wall-mount
Weight 5300g (bare-bone)
Relative Humidity 10% RH – 90% RH (non-condensing)
Operating Temp. -40ºC ~ 60ºC w/ GTX1060 w/0.6 m/S airflow
Storage Temp. -40°C ~ 80°C
Certifications CE, FCC Class A, E13, EN50155
