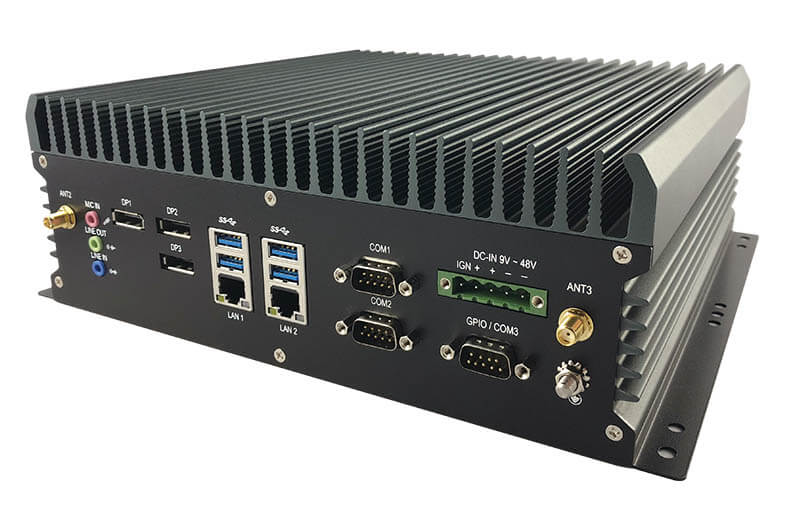

ABOX-5200G4
Intel Gen 8th 6 Cores i7 CPU w/ 10 x GbE (Optional 8 x PoE)/ 3 x COM/ 3 x DP/ 4 x HDMI/4 x USB 3.0/ NVIDIA® GeForce GTX 1060 1280 CUDA cores GPU/ 9-48V/ AI GPU Computing
Základní infomace
- Intel GEN 8th 6 Cores i7-8700T
- NVIDIA® GeForce GTX 1060 GPU
- Support 1280 CUDA Cores
- 8 x GPI and 4 x GPO and 3 x RS-232/422/485
- Dual Hot Swappable SATA Storage RAID 0,1,5
- 9-48V DC Input and Operating Temp.: -40~60°C
- 10 x GbE LAN (Optional for 8 x PoE)
Specifikace
| SYSTEM | |
|---|---|
| CPU | Intel Gen8 Core i7-8700T (12M Cache 2.4GHz up to 4.0GHz) Intel Gen8 Core i5-8500T (9M Cache 2.1GHz up to 3.5GHz) Intel Gen8 Core i3-8100T (6M Cache 3.1GHz) Intel Gen8 Celeron G4900T (2M Cache 2.9GHz) |
| Memory | 2 x DDR4 2400 MHz SO-DIMM up to 32GB |
| LAN Chipset | 9 x Intel i210-AT and 1 x i219 (support iAMT) Gb/s Ethernet Controllers Onboard Support PXE and WOL |
| Watchdog | 1 ~ 255 Level Reset |
| TPM | 2.0 |
| I/O | |
| Serial Port | 3 x RS 232/422/485 (Auto Direction Control) |
| USB Port | 4 x USB 3.0 Ports |
| LAN | 10 x RJ45 Ports for GbE (Optional for 8 x POE total Max.100w) |
| Video Port | 3 x DP, 3 x HDMI Ports |
| DIO Port | 8 x GPI and 4 x GPO |
| Audio | 1 x Line-out, 1 x Line-in and 1 x Mic-in |
| Expansion Bus | 3 x Full Mini-PCle Slots and 1x M.2 A-E Key 2230/3030 slot (2 x SIM Card Sockets for 3G/LTE) |
| GRAPHICS | |
| Graphics | NVIDIA® GeForce GTX 1060 GPU (1280 CUDA Cores) Support for OpenGL 4.5 and OpenCL™ 1.2 Support for DirectX® 12 (Feature Level 12_0) features, VR Ready |
| Resolution | Max Resolution (HDMI 2.0b) :4096x1260@60Hz |
| STORAGE | |
| Type | 2 x 2.5” Drive Bay for SATA Type HDD/SSD RAID 0, 1, 5 1 x mSATA |
| POWER REQUIREMENT | |
| Power Input | 9V -48V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software and BIOS |
| Battery (UPS) | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions (LxWxH) | 260 x 250 x 95 mm |
| Mounting | Wall-mount |
| Weight | 4760g (bare-bone) |
| Relative Humidity | 0% RH – 95% RH |
| Operating Temp. | -40°C ~ 60°C |
| Storage Temp. | -40°C ~ 80°C |
| Certifications | CE, FCC Class A, E13 |
| Patent No. (Taiwan) | M447854-Build-in Battery |
