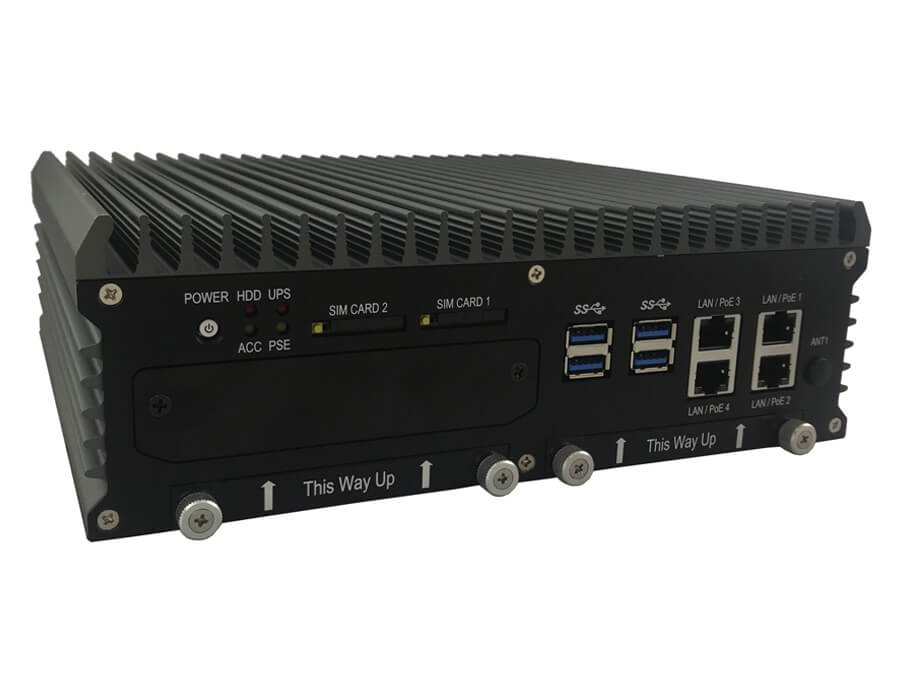

ABOX-5000P

Intel 6th-Gen Skylake Core i7/i5/i3 CPU w/ 4 POE/ 4 ISO COM/ 2 DP/ VGA/ 4 USB 3.0/ Fast Expansible Slot/ 9-36V Fanless Computer

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Intel 6th-Gen Quad Core i7 LGA1151 CPU
  • 4 x RS-232/422/485 with 1.5KVrms isolated
  • 8 x GPI and 4 x GPO with 1.5KVrms isolated
  • 4 x PoE
  • Dual Hot Swappable SATA Storage
  • 9-36VDC Input and Operating Temp.: -40 ~ 70ºC
  • Fast Expansible Slot support PCI-E, USB, SMBus, GPIO and SATA

Specifikace

SYSTEM
CPU Intel Xeon Quad Core E3-1268L v5 (8M Cache 2.4GHz up to 3.4GHz)
Intel Gen6 Core i7-6700TE (8M Cache 2.4GHz up to 3.4GHz)
Intel Gen6 Core i5-6500TE (6M Cache 2.3GHz up to 3.3GHz)
Intel Gen6 Core i3-6100TE (4M Cache 2.7GHz)
Intel Pentium Processor G4400TE (3M Cache, 2.40 GHz)
Memory 2 x DDR4 2133 MHz SO-DIMM up to 32GB
Chipset Intel® C236 / Q170 Platform Controller Hub
LAN Chipset 3 x Intel i210-AT and 1 x i219LM (support iAMT) Gb/s
Ethernet Controllers Onboard Support PXE and WOL
Watchdog 1 ~ 255 Level Reset
I/O
Serial Port 4 x RS-232/422/485 w/1.5KVrms isolation (Auto Direction Control)
USB Port 4 x USB 3.0 Ports
LAN 4 x RJ45 Ports for PoE (15.4W per port)
Video Port 2 x Display Port and 1 x VGA Port (Triple Independent Display)
DIO Port 8 x GPI and 4 x GPO connector w/1.5KVrms isolation
Audio 1 x Line-out and 1 x Mic-in (Line-in Optional)
Expansion Bus 3 Full and 1 Half Mini-PCIe Slot (2 x SIM Card Sockets for 3G/LTE)
FES Expansion Support PCI-E, USB, SMBus, GPIO and SATA (Customized for Customer without NRE charge)
STORAGE
Type 1 x 2.5" drive bay for SATA Type Hard Disk Drive / SSD
1 x SATA DOM
POWER REQUIREMENT
Power Input 9V -36V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software and BIOS
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)
Patent No. : M447854 - Build-in Battery
MECHANICAL & ENVIRONMENTAL
Dimensions (LxWxH) 240 x 226 x 79 mm
Mounting Wall-mount, VESA-mount, Din Rail Mounting Kit
Weight 3860g (bare-bone)
Relative Humidity 0% RH – 95% RH
Operating Temp. -40ºC ~ 70°C (Default CPU 35 Watt)
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A
Patent No. (Taiwan) M447854, M448011
