7SL-XR5610
Intel 4/5th XEON SP 1U Dell Military server
Popis
Díky integraci odolnosti proti vibracím a nárazům certifikované podle normy MIL-STD-810G společnost 7StarLake posiluje serverové platformy společnosti Dell, včetně modelů XR-5610, XR-7620 a R760, proti nejnáročnějším provozním výzvám. Kromě toho společnost 7StarLake využívá své rozsáhlé odborné znalosti v oblasti řízení teploty a optimalizuje tyto servery tak, aby bezproblémově fungovaly v teplotách od -30 °C do +55 °C, což je činí ideálními pro obranné, letecké a průmyslové aplikace.
- Intel® 4/5th XEON® 1U Dell Military Server
- Up to 2x PCIe Gen5 low profile (two x16 PCIe Gen5)
- 4x 2.5” Swappable SATA SSD up to (RAID 0,1,5,10)
- 4x 25G GbE SFP+, 1x iDRAC Direct (Micro-AB USB 2.0), 1x iDRAC dedicated
- 1x USB 3.0, 1x Serial (Micro-AB USB2.0) port, 1x Mini-Display Port
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration : 5.0 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6 : ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6 : ◎Acceleration: 20G
- MIL-STD-810 Temperature Method 501.5 502.5: ◎ Operating Temp High 55°C
- MIL-STD-810 Temperature Method 501.5 502.5: ◎ Operating Temp Low -30°C
Specifikace
| Processor | 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors, Socket E (LGA-4677) |
| CPU Core Count | Up to 16 Cores/32 Cores |
| Memory Type | DDR5-5600MT/s RDIMM ECC, up to 1TB in 8 DIMM slot |
| TPM | Chipset: Infineon, Type: TPM 2.0 |
| IPMI | iDRAC RESTful API with Redfish |
| BIOS | AMI UEFI BIOS |
| USB | 1x USB3.0 +1x USB2.0 ports |
| Ethernet | 4x 25G Ethernet SFP+ Ports |
| Power Type | 100V~240V AC IN Redundant |
| Storage | 4x 2.5” Swappable SATA SAS |
| Operating Temp. | -10°C to +55°C |
| Dimension | 482mm(W) x 566mm(D) x 42mm(H) |
| Front I/O | 1x Power Button 1x SSD LED indicator 4x Swappable SSD Tray 1x iDRAC Direct (Micro-AB USB 2.0) port, 1 x USB 2.0 |
| StorageRear I/O | 1x iDRAC dedicated Direct port 1x USB3.0 1x (Micro-AB USB 2.0) 1x 1G LAN1 4x 10 LAN 1x Mini-DP |
| MIL-STD-810 Test | Method 500.5, Procedures I and II (Altitude, Operation): 12,192M, (40,000 ft) for the initial cabin altitude (18.8Kpa or 2.73 Psia) Method 500.5, Procedures III and IV (Altitude, Non-Operation): 15,240, (50,000 ft) for the initial cabin altitude (14.9Kpa or 2.16 Psia) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) Method 507.5, Procedure II (Temperature & Humidity) Method 509.7 Salt Spray (50±5)g/L(Optional for Conformal Coating) Method 514.6, Vibration Category 24/Non-Operating (Category 20 & 24,Vibration) Method 514.6, Vibration Category 20/Operating (Category 20 & 24,Vibration) Method 516.6, Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6, Shock-Procedure I Operating (Mechanical Shock) |
| Operating Temp. | -10°C to +55°C |
| Storage Temp. | -20°C to +60°C |
| Relative Humidity | 5% to 95%, non-condensing |

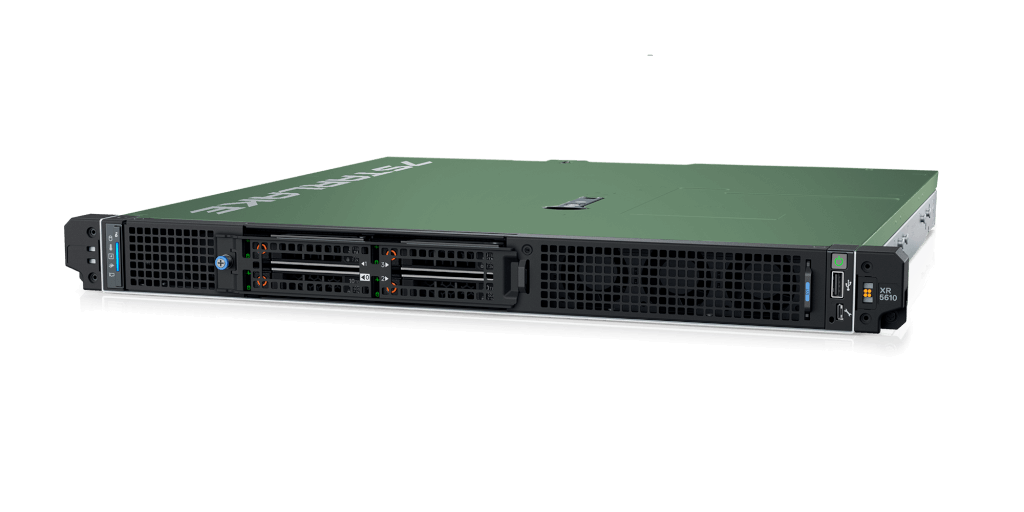

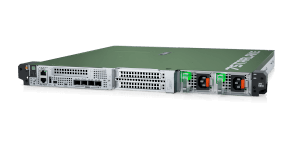

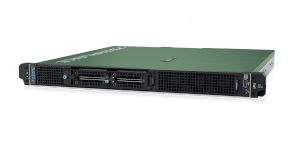

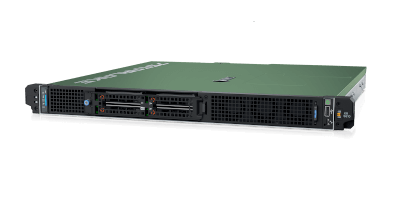

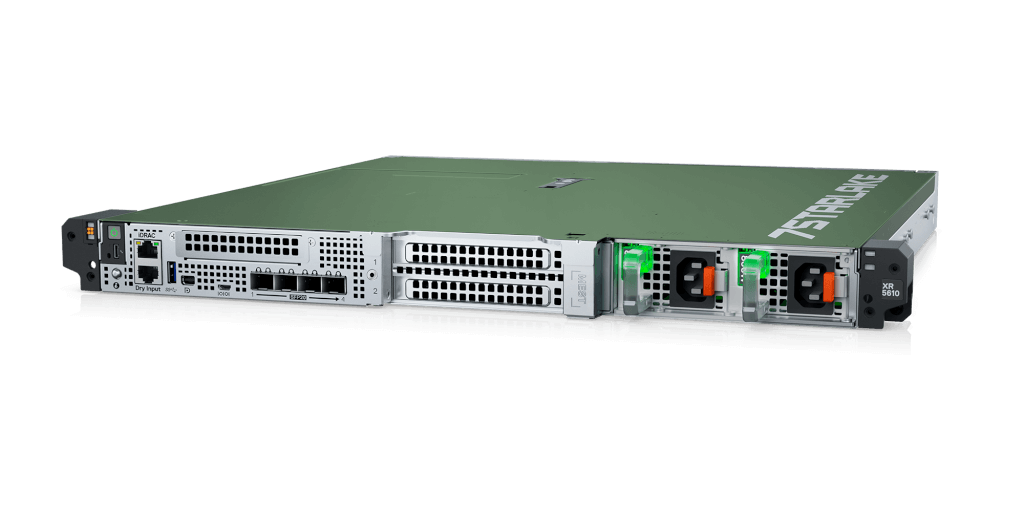

Fotogalerie
