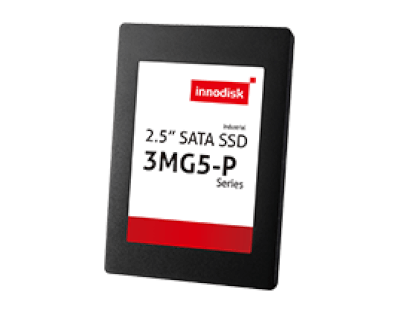

2.5" SATA SSD 3MG5-P
2.5” SATA III solution for industrial field
Základní informace
- 2.5” SATA III solution for industrial field
- 7mm height mechanical design
- High IOPS with 3D NAND solution
- L³ architecture extends lifespan
- RAID Protection
- iData Guard for abnormal power failure
- Built-in thermal sensor
- iCell technology for data protection (optional)
- iSMART disk health monitoring
3MG5-P is innodisk’s first product series supported 3D NAND flash. Innodisk 2.5” SATA SSD 3MG5-P is characterized by L³ architecture and RAID engine with the latest SATA III (6.0GHz) ID204 controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan. Innodisk 2.5” SATA SSD 3MG5-P is equipped RAID engine to offer additional level of data protection for exceptional reliability.
Specifikace
| Model Name | 2.5" SATA SSD 3MG5-P |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | 3D MLC |
| Type | 2.5" |
| Capacity | 128GB~512GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 560/500 |
| Max. Power Consumption | 3.6 W (5V x 720 mA ) |
| Thermal Sensor | Y |
| External DRAM Buffer | Y |
| iCell | Y |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 69.85 x 100.10 x 6.9 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C |
