2.5” SATA III solution for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 2.5” SATA III solution for industrial field
  • Hardware-based AES 256bits key
  • iData Guard for abnormal power failure
  • iCell technology for data protection (optional)
  • Compliant with TCG OPAL 2.0
  • Compliant with IEEE 1667
  • 7mm height mechanical design
  • iSMART disk health monitoring

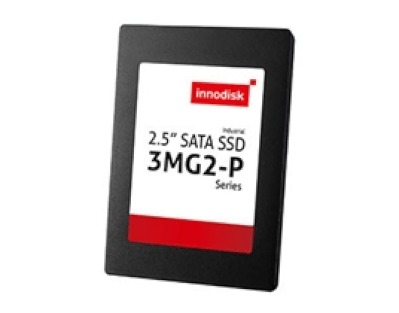

Innodisk 2.5” SATA SSD 3MG2-P is SATA III 6Gb/s flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. Innodisk 2.5” SATA SSD 3MG2-P is designed with AES engine, which is built-in the controller. When controller receives the data package from host, AES engine encrypts the data package and save the encrypted data into NAND flash. Thus, unauthorized personal has no access to decrypt the data in NAND flash. Innodisk 2.5” SATA SSD 3MG2-P supports several standard features, including TRIM, NCQ, and S.M.A.R.T and compliant with TCG OPAL 2.0 and IEEE 1667.


Model Name 2.5" SATA SSD 3MG2-P AES
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type 2.5"
Capacity 8GB~2TB
Max. Channels 4
Sequential R/W (MB/sec, max.) 520/360
Max. Power Consumption 6 W (5V x 1.2A )
Thermal Sensor Y
External DRAM Buffer Y
H/W Write Protect N
iCell Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 70.0 x 100.0 x 6.8
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
