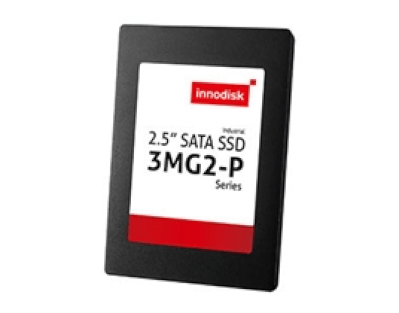

2.5" SATA SSD 3MG2-P

2.5” SATA III solution for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 2.5” SATA III solution for industrial field
  • 7mm height mechanical design
  • High IOPS
  • Intelligent error recovery system
  • iSMART disk health monitoring
  • iData Guard for abnormal power failure
  • iCell technology for data protection (optional)
  • DEVSLP supported

Innodisk 2.5” SATA SSD 3MG2-P is SATA III 6Gb/s flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. 3MG2-P 2.5” SSD not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability. Additionally, 3MG2-P SATA SSD can support device sleep mode (DEVSLP) and thus be able to benefit in extreme low power consumption.

Specifikace

Model Name 2.5" SATA SSD 3MG2-P
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type 2.5"
Capacity 8GB~2TB
Max. Channels 4
Sequential R/W (MB/sec, max.) 520/480
Max. Power Consumption 6 W (5V x 1.2A )
Thermal Sensor Y
External DRAM Buffer Y
H/W Write Protect N
iCell Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 70.0 x 100.0 x 6.8
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
