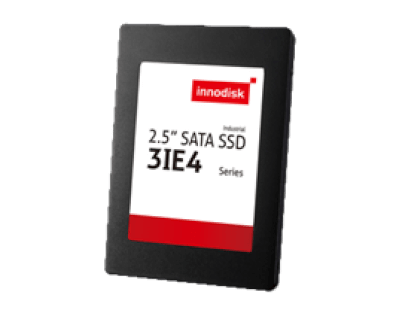

2.5" SATA SSD 3IE4

2.5” SATA III soultion for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 2.5” SATA III soultion for industrial field
  • 7mm height mechinicial design
  • DRAM-less, high-level data integrity
  • L³ architecture extends lifespan
  • Excellent IOPS boosts system performance
  • Built-in thermal sensor
  • Support S.M.A.R.T, TRIM, NCQ and iData Guard

Innodisk 2.5” SATA SSD 3IE4 is characterized by L³ architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Specifikace

Model Name 2.5" SATA SSD 3IE4
Interface SATA III 6.0 Gb/s
Flash Type iSLC
Type 2.5"
Capacity 8GB~128GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 530/380
Max. Power Consumption 0.8 W (5V x 160 mA )
Thermal Sensor Optional
External DRAM Buffer N
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 69.85 x 100.10 x 6.9
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
