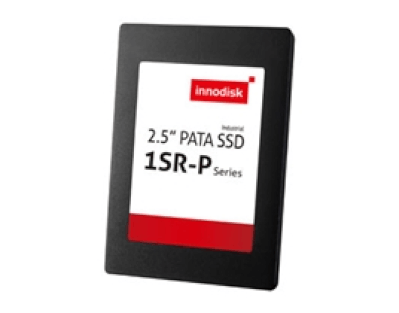

2.5" PATA SSD 1SR-P
2.5” PATA solution for industrial field
Základní informace
- Compliant with MIL-STD-810-F/G
- Data security (Quick Erase/ Secure Erase/ Destroy/ Write Protect)
- High random R/W performance
- iSMART disk health monitoring
- Intelligent error recovery system
- Enhanced power cycling management
- iCell technology for data protection
- Conformal coating (optional)
Innodisk 2.5” PATA SSD 1SR-P complies with ATA 7 standard, and supports Ultra DMA (0-5) and PIO (0-4) transfer modes, which delivers good performance and reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and mission critical applications. Especially, it comes with several data security functions, including QEraser/ SEraser/ Destroy and also Write Protect. All the security functions can be triggered both by hardware and software approaches. 2.5” PATA SSD 1SR-P is compliant with MIL-STD-810F/G standards. 2.5” PATA SSD 1SR-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.
Specifikace
| Model Name | 2.5" PATA SSD 1SR-P |
| Interface | PATA |
| Flash Type | SLC |
| Type | 2.5" |
| Capacity | 8GB~256GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 90/90 |
| Max. Power Consumption | 2.5 W (5V x 500 mA ) |
| Thermal Sensor | Y |
| External DRAM Buffer | Y |
| H/W Write Protect | N |
| iCell | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 69.85 X 99.85 X 9.20 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
