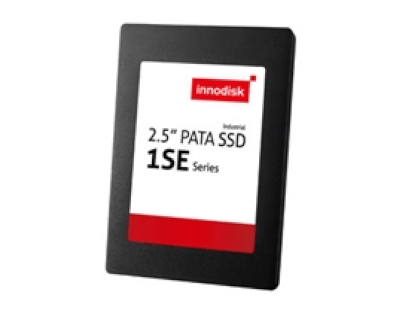

2.5" PATA SSD 1SE
2.5” PATA soultion for industrial field
Základní informace
- 2.5” PATA soultion for industrial field
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Enhanced power cycling management
Innodisk 2.5” PATA SSD 1SE complies with ATA 7 standard, and supports Ultra DMA (0-5) and PIO (0-4) transfer modes, which delivers good performance and reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. 2.5” PATA SSD 1SE not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.
Specifikace
| Model Name | 2.5" PATA SSD 1SE |
| Interface | PATA |
| Flash Type | SLC |
| Type | 2.5" |
| Capacity | 4GB~256GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 90/90 |
| Max. Power Consumption | 1.8 W (5V x 355 mA ) |
| Thermal Sensor | Wide Temp. only |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| iCell | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 69.85 x 99.85 x 9.20 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
