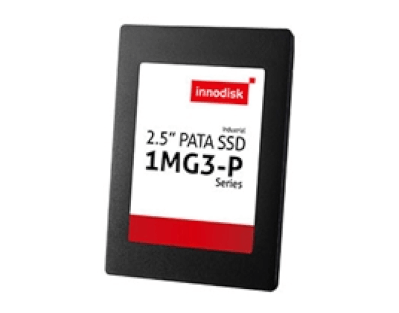

2.5" PATA SSD 1MG3-P

2.5” PATA solution for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 2.5” PATA solution for industrial field
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Enhanced power cycling management

Innodisk 2.5” PATA SSD 1MG3-P complies with ATA 7 standard, and supports Ultra DMA (0-5) and PIO (0-4) transfer modes, which delivers good performance and reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. 2.5” PATA SSD 1MG3-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

Specifikace

Model Name 2.5” PATA SSD 1MG3-P
Interface PATA
Flash Type MLC
Type 2.5"
Capacity 8GB~512GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 90/10
Thermal Sensor Wide Temp. only
External DRAM Buffer N
H/W Write Protect N
iCell N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 69.85 x 99.85 x 9.20
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
