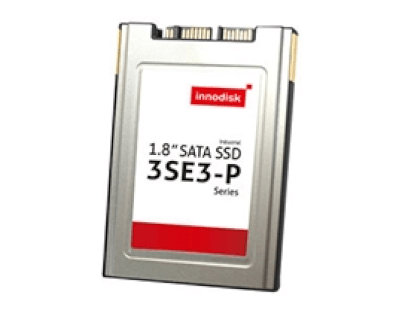

1.8" SATA SSD 3SE3-P

1.8” SATA III solution for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  •  1.8” SATA III solution for industrial field
  •  iSMART disk health monitoring
  •  Intelligent error recovery system
  •  Excellent data transfer speed
  •  Enhanced power cycling management

Innodisk 1.8” SATA SSD 3SE3-P is SATA III 6Gb/s flash based disk, which delivers excellent performance and reliability, making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. 1.8” SATA SSD 3SE3-P not only performs unmatched performance, but is also designed with Innodisk-owned technical know-how to ensure data integrity and the highest level of reliability.


Model Name 1.8" SATA SSD 3SE3-P
Interface SATA III 6.0 Gb/s
Flash Type SLC
Type 1.8"
Capacity 8GB~512GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 490/230
Max. Power Consumption 1.5 W (5V x 300 mA)
Thermal Sensor ST- Optional / WT- Default
External DRAM Buffer Y
H/W Write Protect N
iCell N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 54.0 x 78.5 x 5.00
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
