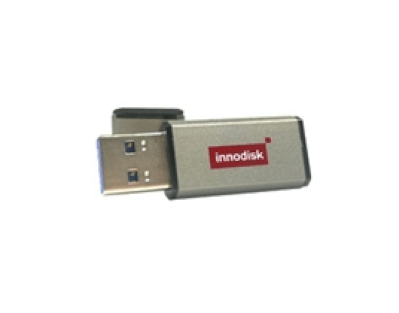

USB Drive 3ME

The Innodisk USB Drive product

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • High performance with USB 3.0 interface
  • Low power consumption
  • Wear-Leveling supported
  • ECC engine coverage up to 60-bit/1024 Bytes
  • Metal housing for robust usage
  • 30μ golden finger for highly reliable data transfer quality

The Innodisk USB Drive products provide high capacity USB flash memory storage that electrically complies with High-speed USB 3.0 interface & backward compatible with USB 2.0. The device features attractive small form factor and the connectivity over USB 3.0 and the NAND flash architecture provide a faster data transmission.

Specifikace

Model Name USB Drive 3ME
Interface USB 3.0
Flash Type MLC
Type Standard
Capacity 8GB~64GB
Max. Channels 1
Sequential R/W (MB/sec, max.) 100/50
Max. Power Consumption 0.70 W (5V x 141 mA)
H/W Write Protect N
S.M.A.R.T. N
Dimension (WxLxH/mm) 16.5 x 48.3 x 7.6 mm
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
