BE10A - Entry-Level Box PC for Industrial Applications

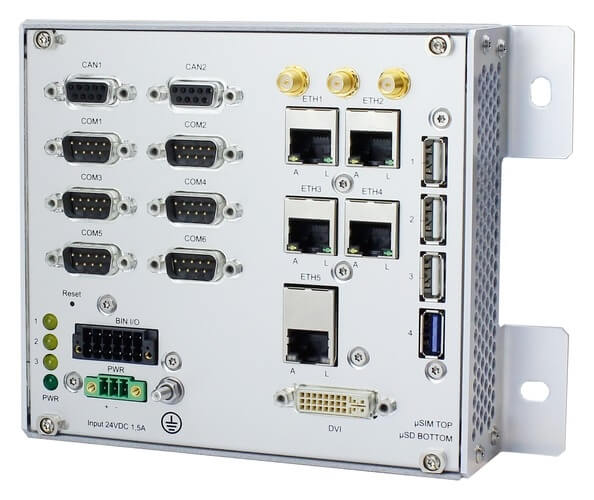

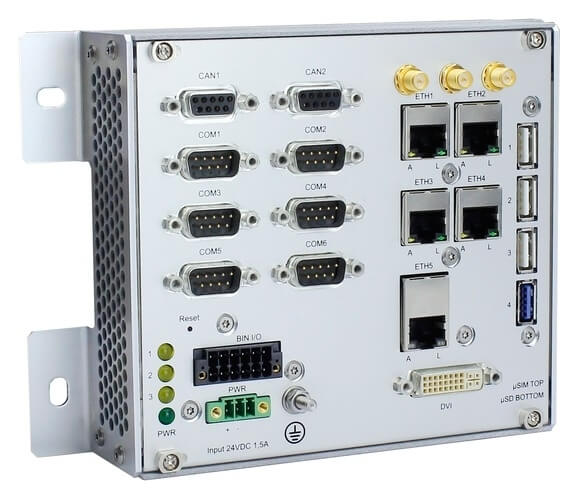

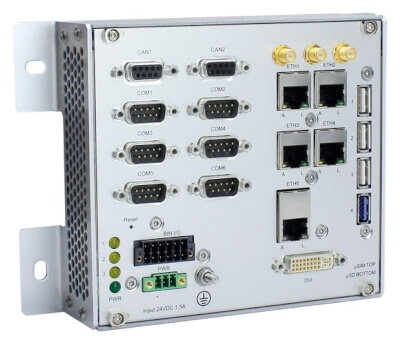

MEN BE10A - Entry-Level Box PC for Industrial Applications Industrial Stand-Alone Device The BE10A is a cost-effective low-power solution for a wide range of stationary and mobile applications using a TI Sitara ARM Cortex CPU AM5718.

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Základní informace Specifikace Fotogalerie Ke stažení

Základní informace

Compact low-power solution for IoT and automation applications
TI Sitara ARM Cortex-A15 AM57x8 single or dual core
Built-in quad core PRU and DSP core
1 mSATA slot, 1 microSD card slot for storage
1 PCI Express Mini Card slot with 1 microSIM slot for WLAN, GSM (2G), UMTS (3G), LTE (4G), GPS or GLONASS functionality
Gb and Fast Ethernet, USB (2.0 and 3.0), RS232, RS485/422, CAN, binary I/O, audio, DVI-D
DIN rail, wall or 19" rack mounting
Input voltage 24 V DC nom. (8 to 60 V DC range)
0 to +60°C operating temperature
Fanless and maintenance-free operation

Specifikace

Technical Data

CPU

The following CPU types are available:

TI Sitara ARM Cortex-A15, AM5718, 1.5 GHz, single core, no ECC
TI Sitara ARM Cortex-A15, AM5728, 1.5 GHz, dual core, no ECC
TI Sitara ARM Cortex-A15, AM5738, 1.5 GHz, dual core, ECC

Memory

System Memory
- Soldered DDR3 with or without ECC
- 1 GB, or
- 2 GB

Mass Storage

The following mass storage devices can be assembled:

One microSD card
One mSATA disk

Graphics

Integrated in processor
1080p HD video acceleration
Dual 3D graphics and single 2D graphics
Maximum resolution: 1920 x 1200p
Via one DVI interface

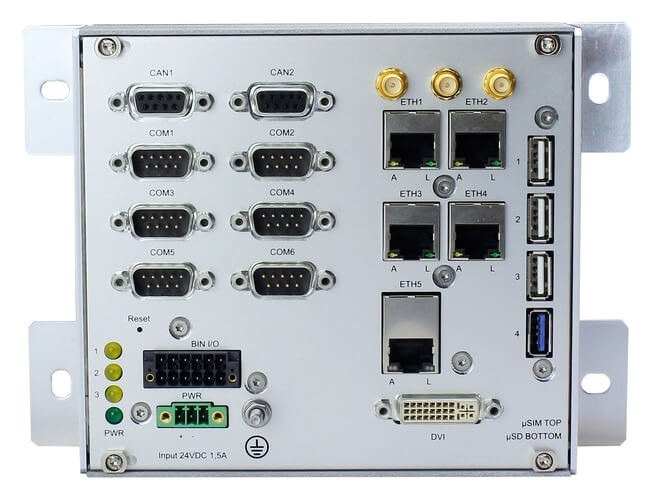

Front Interfaces

Video
- One DVI-D single link interface
- HDMI 1.4a, HDCP 1.4 and DVI 1.0 support
USB
- One Series A connector, USB 3.0
- Three Series A connectors, USB 2.0
Ethernet
- One RJ45 connector, 1000BASE-T
- Four RJ45 connectors, 100BASE-T
- Two link and activity LEDs per channel
Antenna connections
- Three antenna connector cutouts, linked to PCI Express Mini Card, for various types (SMA, reverse SMA, QMA, FME...)
Legacy serial I/O
- Four RS232 interfaces on 9-pin D-Sub connectors
- Seven RS422/485 interfaces, full duplex on 9-pin D-Sub connectors
- One RS422 interface on 9-pin D-Sub connector
CAN Bus
- Two 9-pin D-Sub connectors
Binary I/O
- Eight binary inputs (8 to 60 V DC, 10 mA per channel, 1 kHz max.)
- Four binary outputs (open-drain, 300 mA sink current per channel)
Additional status LEDs
- One for power status
- Three user LEDs
Power supply
Audio
- One Line Out on binary I/O connector

In-System Interfaces

mSATA
- One mSATA slot, SATA Revision 2.x (3 Gbit/s)
PCI Express Mini Card
- One slot, for mobile service, wireless communication, positioning or real-time Ethernet functions such as
- GLONASS and GPS PCI Express MiniCard (full size), 3-axis Gyro sensor, -40..+85°C with qualified components
- WLAN PCI Express MiniCard DNXA-116, -40 to +85°C screened, storage temperature -40° to +85°C
- MC7304 PCI Express MiniCard, full-size on USB: LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, GSM, GPRS, EDGE, and GNSS, -40 to +85°C
- One microSIM card slot
- PCI Express and USB interface

Supervision and Control

Real-time clock with supercapacitor backup

Data retention of supercapacitor: 7 days

Electrical Specifications

Isolation voltage: 1500 VDC between Ethernet interfaces and shield
Supply voltages
- 24 V nominal input voltage
Power consumption
- 15 W max. (estimated), with PCI Express Mini card and mSATA module

Mechanical Specifications

Dimensions: Height 133 mm (3U) x Width 142 mm (28 HP) x Depth 33 mm
Weight: less than 1 kg

Environmental Specifications

International Protection Rating:
- IP20 (IEC 60529)
- Other IP protection classes possible on request
Temperature range (operation)
- 0°C to +60°C (screened)
- Fanless operation
Temperature range (storage): -40°C to +85°C
Humidity: EN 60068-2-30, EN 50155
Altitude: -300 m to +3000 m
Shock: EN 50125-3, class: 3 m from track
Vibration: EN 50125-3, class: 3 m from track
Conformal coating of internal components; optional
