98211

Odolný router s výškou 4U pro zabudování do 19'' racku

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

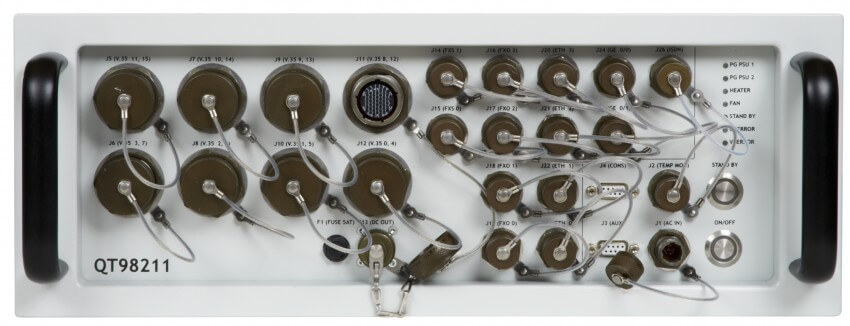

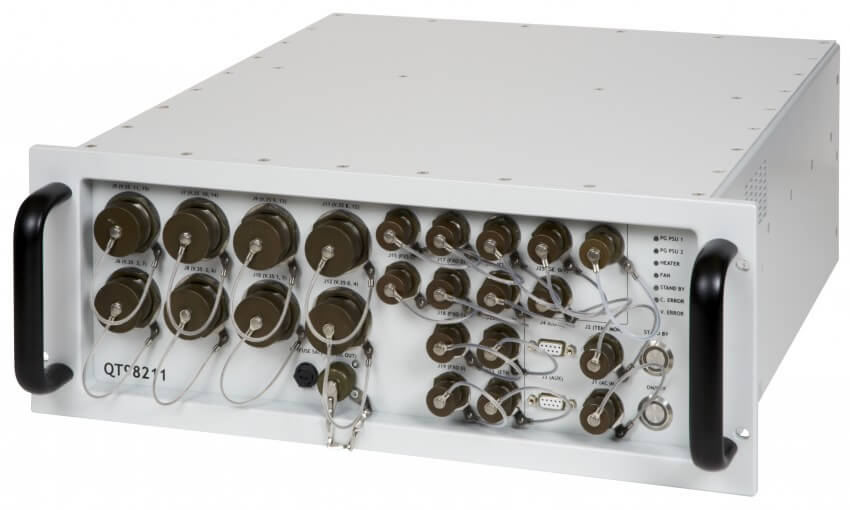

Aqeri 98211 is a military router based on Cisco 2821-HSEC/9. The unit is equipped with Cisco modules for Ethernet, FXO, FXS, V35, ISDN etc. Aqeri 98211 has internal climate control for use in a wide temperature area and a temperature monitoring port for alarm output. Further, it features an internal redundant AC power unit and a 24VDC outlet for driving external equipment.

Specifikace

TECHNICAL SPECIFICATIONS:
Router Board: Cisco 2821-HSEC/9
I/O Interfaces
10/100Mbit: x6
FXO: x4
FXS: x2
V.35: x8
ISDN: x1
Aux: x1
Console: x1
Temp Monitoring: x1
24VDC 5A: x1

CONNECTORS
10/100 Mbit: MIL 38999
FXO: MIL 38999
FXS: MIL 38999
V.35: MIL 38999
ISDN: MIL 38999
Aux: DSUB
Console: DSUB
Temp Monitoring: MIL 38999
24VDC 5A: MS3106F 10SL-3S
AC In: MIL 38999

PHYSICAL CHARACTERISTICS
Dimensions: 440 x 177 x 504mm (WxHxD)
Weight: 17kg
Color: Grey, other optional

ELECTRICAL SPECIFICATIONS
Power requirements: 90-264 VAC, 50-60Hz (Internal Redundant Power Supply)
Power consumption: 110W (excluding heaters)

ENVIRONMENTAL CHARACTERISTICS
Designed to fulfill (other standards on request): MIL-STD-461E
MIL-STD-810G
European CE
TEMPEST SDIP-27 Level A, B, C Option
Temperature Operating: -20°C to +55°C
Vibration Operating: 20-2000Hz 0,04g rms
Shock Operating: 40g, 6ms, ½ sine wave
Humidity: 5% to 95% non condensing
Altitude Operating: 3000m
