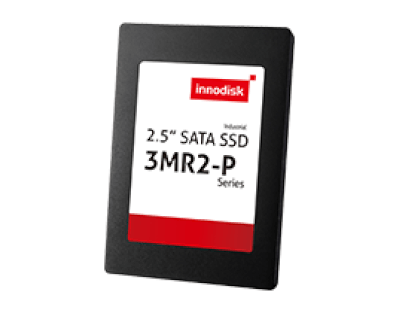

2.5" SATA SSD 3MR2-P

2.5” SATA III solution for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Compliant with MIL-STD-810-F/G
  • Data security (QEraser/ SEraser/ Destroy/ Write Protect)
  • High random R/W performance
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Enhanced power cycling management
  • iCell technology for data protection
  • Conformal coating (optional)

Innodisk 2.5” SATA SSD 3MR2-P is a SATA III 6.0Gb/s Flash based disk, which delivers excellent performance and reliability. Especially, it comes with several data security functions, including Quick Erase/ Security Erase/ Destroy and also Write Protect. All the security functions can be triggered both by hardware and software approaches. 2.5” SATA SSD 3MR2-P is compliant with MIL-STD-810F/G standards. The SSD is equipped ruggedized hardware design and thus it can perform well in the harsh environment. 2.5” SATA SSD 3MR2-P is developed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

Specifikace

Model Name 2.5" SATA SSD 3MR2-P
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type 2.5"
Capacity 8GB~2TB
Max. Channels 4
Sequential R/W (MB/sec, max.) 520/450
Max. Power Consumption 5.78 W (5V x 1155 mA )
Thermal Sensor Y
External DRAM Buffer Y
H/W Write Protect Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 69.85 x 100.00 x 9.5
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
