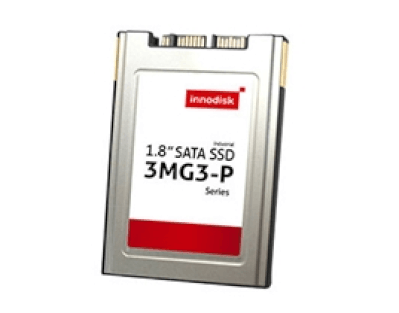

1.8" SATA SSD 3MG3-P

1.8” SATA III solution for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 1.8” SATA III solution for industrial field
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Enhanced power cycling management

Innodisk 1.8” SATA SSD 3MG3-P is SATA III 6Gb/s Flash based disk, which delivers excellent performance and reliability, making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. 1.8” SATA SSD 3MG3-P not only performs unmatched performance, but also designed with Innodisk owned technical now how to ensure the data integrity and highest levels of reliability.

Specifikace

Model Name 1.8" SATA SSD 3MG3-P
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type 1.8"
Capacity 8GB~512GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 460/240
Max. Power Consumption 5 W (5V x 1A )
Thermal Sensor Y
External DRAM Buffer Y
H/W Write Protect N
iCell N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 54.0 x 78.5 x 5.00
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
