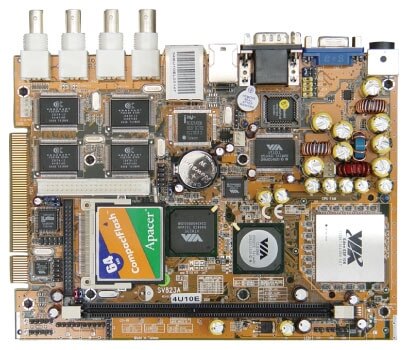

SV823A

Specifications:
. CPU type:
   On-board VIA C3/ Eden 376 PIN EBGA package
. Front Side Bus:
   100/133 MHz
. MB Chipset:
   VIA CLE266 VT8623 + VT8235
. Graphics:
   Integrated with VT8623
   Shared system memory up to 64MB
. Memory:
   1 x DDR SDRAM (max. 512MB)
. IDE:
   Ultra DMA-133/100/66 transfer protocols
   1x 40 pin 2.54mm, 1x44 pin 2.0mm
   Support Compact Flash card type II for ATA interface
. Video-in:
   4~16 ports with Conexant BT878A chipset
. Audio:
   AC’97 2.1
. TV-Out:
   NTSC(M, J) or PAL(B,D,G,H,I,M,N,Nc)
. LAN:
   1 x Realtek 10/100 Mbps (SV823A-4S10E)
   1 x Intel Gigabit (SV823A-4U/4H)
. IO function:
   1 x RS232, 1x RS232/422/485
   Support Infrared SIR and FIR
. USB:
   4 x USB 2.0
. DIO & WDT:
   Hardware digital Input & Output, 4xDI / 4xDO
   Hardware Watch Dog Timer, 0~255 sec programmable
. Expand interface:
   1 x PCI gold finger, rev.2.2 interface
. Power:
   On board power DC +12V±5% convert into system
   +3.3V/+12V/+5V
. Dimension:
   200 x 150 mm
. Operation Temperature:
   0 ~ 45°C
. Operation Humidity:
   5~95% @45°C, non-condensing
