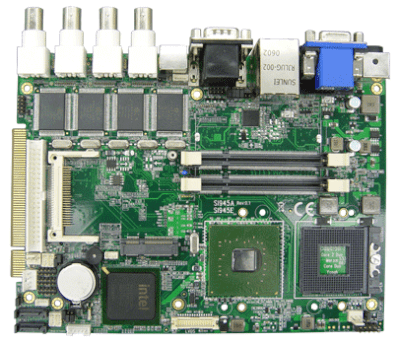

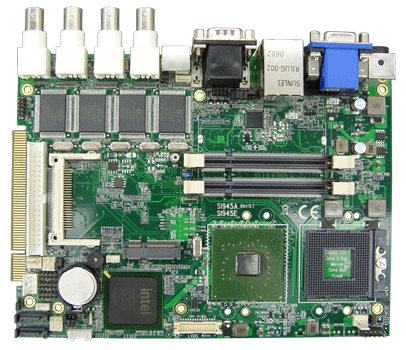

| MODEL |
SI945A |
| CPU Type |
Intel Core 2 Duo / Core Duo CPU socket M |
| Front Side Bus |
533 / 667 MHz |
| MB Chipset |
Intel 945 GME + ICH7M ( 82801 GBM ) |
| BIOS |
Award BIOS |
| Graphics |
Intel Gen 3.5 Integrated Graphics Engine
Dynamic Video Memory Technology ( DVMT 3.0 )
Higher performance MPEG-2 decoding |
| LVDS |
Data format of 18 bits / 36 bits |
| System Memory |
2 x DDR2 SO-DIMM socket (max. 3GB) |
| IDE |
Ultra ATA 100 / 66 / 33, 1 x 40 pin 2.54mm
CF Card Type 2 socket for ATA interface |
| SATA |
2 x SATA ports |
| Audio |
Intel HD Audio Specification Rev. 1.0 Compliant
Support Line-out / Mic-in / Line-in |
| LAN |
1 x Realtek RLT8111C 10 / 100 / 1000 Mbps. Support PCIe |
| IO Function |
1 x RS232 + 1 x RS232 / 422 / 485
PS/2 keyboard & mouse |
| USB |
8 x USB 2.0 ( 2 external + 6 internal ) |
| Video-in |
1/4 Conexant CX25878 chip for 4~16 ports video-in |
| TV-Out |
Support all NTSC & PAL formats. Support HDTV & S-video |
Touch Screen
(option) |
USB interface Touch screen controller
Support 4- , 5- , 8- wire Analog Resistive Touch screen
USB 1.1 full speed sample rate maximum of 300 point / sec |
| DIO & WDT |
Hardware digital Input & Output, 8 x DI / 8 x DO
Hardware Watch Dog Timer, 0~255 sec programmable |
| Expansion Interface |
1 x Mini PCI socket
1 x PCI gold finger
(with RS007/RS009 PCI Riser Card upgrade to 2 x PCI card)
1 x PCIe mini card for USB interface (option) |
| Power |
On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system |
| Dimension |
200 x150 mm |
| Operation Temperature |
0 ~ 60 °C |
| Operation Humidity |
5 ~ 95% @ 60 °C, non-condensing |
| Expansion |
GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O |
| Chassis |
TWISTER, TINO |
