SI525AW

Jednodeskový počítač s procesorem Intel Atom D525

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073
Poptat řešení
Základní informace Specifikace Fotogalerie Ke stažení

Základní informace

Features:
Intel Atom D525 processor, 4~16 Video-in, PCI, Mini PCI, 2 SATA,
LVDS, Touch Screen, WDT/DIO, Mini Card, SIM Card Socket

Specifikace

MODEL SI525AW
CPU Type Intel Atom D525 1.8 GHz ( Dual core processor )
MB Chipset Intel Atom D525 + ICH8M ( 82801 HBM )
BIOS Award BIOS
Graphics Intel Luna Pier Refresh Pineview-D Integrated Graphics Engine
LVDS Data format of 18 bits
System Memory 1 x DDR3 SO-DIMM socket ( max. 4GB ) or

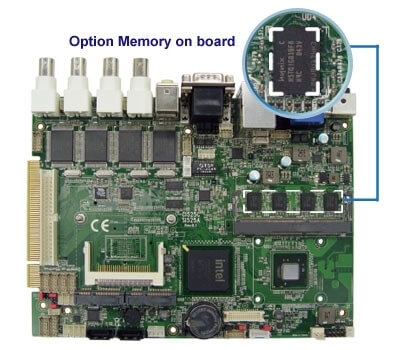

On board DDR3 SDRAM 1GB and
1 x DDR3 SO-DIMM socket ( max. 2GB )

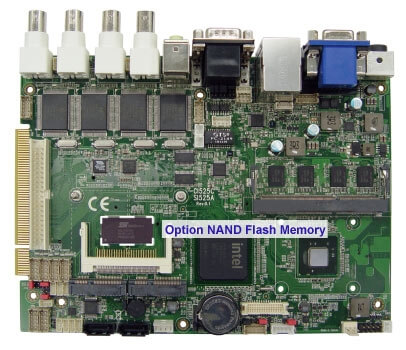

NAND Flash Memory CF Card Type 2 socket for ATA interface
On board SSD 2 / 4 / 8 GBytes ( option )
IDE Ultra ATA 100 / 66 / 33, 1 x 40pin 2.54mm
SATA 2 x SATA ports
Audio Intel HD Audio Specification Rev. 1.0 Compliant
LAN 1 x Realtek RLT8111DL or lntel 82583V / 82574L 10/100/1000 Mbps ( option )
IO Function 1 x RS232 or 485 ( option ) + 1 x RS232 / 422 / 485 or 4 x RS422 or 485 ( option )
PS/2 keyboard & mouse
USB 1 or 4 Conexant CX25878 chip/s for 4~16 ports video-in
Video-in 8 x USB 2.0 ( 2 external + 6 internal )
Audio Amplifier (option) Two channels Audio Amplifier
6W/CH Class-D operation into an 8-Ω Load from a 12-V Supply
Touch Screen (option) USB interface Touch screen controller
Support 4- , 5- , 8- wire Analog Resistive Touch screen
USB 1.1 full speed sample rate maximum of 300 point / sec
Resolution : 2048 x 2048
DIO & WDT Hardware digital Input & Output, 8 x DI / 8 x DO
Hardware Watch Dog Timer, 0~255 sec programmable
Expansion Interface 1 x Mini PCI socket, 1 x PCI gold finger
2 x PCIe mini card for PCIe & USB interface
2 x 3G SIM card sockets
Power On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system or
Wide range DC-IN from +6V to +36V ( option )
Dimension 200 x150 mm
Operation Temperature 0 ~ 60 °C
Operation Humidity 5 ~ 95% @ 60 °C, non-condensing
Expansion GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O
Chassis TWISTER, NEO, TINO


Fotogalerie

(1)
(2)
(3)
(4)
(5)
Zobrazit všechny fotky

Ke stažení

Datasheet Lexcom SI525AW
