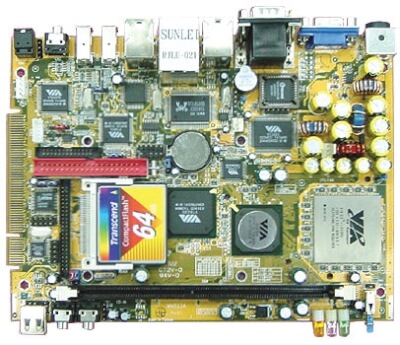

MV823A

Specifications:
. CPU type:
   On-board VIA Eden 376 PIN EBGA package
. Front Side Bus:
   100/133 MHz
. MB Chipset:
   VIA CLE266 VT8623 + VT8235
. Graphics:
   Integrated with VT8623
   Shared system memory up to 64MB
. Memory:
   1 x DDR SDRAM(max. 512MB)
. IDE:
   Ultra DMA-133/100/66 transfer protocols
   1 x 40 pin 2.54mm, 1 x 44 pin 2.0mm
   Support Compact Flash card type II for ATA interface
. Sound:
   AC’97 2.2
   Support 5.1 channel Audio and SPDIF-OUT
. LVDS:
   Support data format of 18 bits/36 bits
. TV-Out:
   NTSC(M, J) or PAL(B,D,G,H,I,M,N,Nc)
. LAN:
   1 x Realtek 10/100 Mbps
. IO function:
   2x RS232
   Support Infrared SIR and FIR
. Video-In:
   Philip SAA7113H Video decode with VIA CLE266 video capture
   Support NTSC/PAL/PAL-M/SECAM video in
. USB:
   4 x USB 2.0
. IEEE 1394:
   OHCI compliant programming interface
   Integrated 400Mbit 2 port PHY
. DIO & WDT (option):
   Hardware digital Input & Output, 4xDI / 4xDO
   Hardware Watch Dog Timer, 0~255 sec programmable
. Expand interface:
   1 x PCI gold finger, rev. 2.2 interface
. Power:
   On board power DC +12V±5% convert into system
   +3.3V/+12V/+5V
. Dimension:
   200 x 150 mm
. Operation Temperature:
   0 ~ 45°C
. Operation Humidity:
   5~95% @ 45°C, non-condensing
