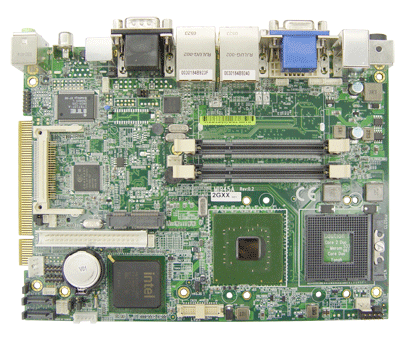

| MODEL |
MI945A |
| CPU Type |
Intel Core 2 Duo / Core Duo CPU socket M |
| Front Side Bus |
533 / 667 MHz |
| MB Chipset |
Intel 945 GME+ ICH7M ( 82801 GBM ) |
| BIOS |
Award BIOS |
| Graphics |
Intel Gen 3.5 Integrated Graphics Engine
Dynamic Video Memory Technology ( DVMT 3.0 )
Higher performance MPEG-2 decoding |
| LVDS |
LVDS1: 18 / 36 bits / LVDS2: 24 / 48 bits ( option ) |
| System Memory |
2 x DDR2 SO-DIMM socket ( max. 3GB ) |
| IDE |
Ultra ATA 100 / 66 / 33, 1 x 40 pin 2.54mm
CF Card Type 2 socket for ATA interface |
| SATA |
2 x SATA ports |
| Audio |
Intel HD Audio Specification Rev. 1.0 Compliant
Support Line-out / Mic-in / Line-in |
| LAN |
2 x Realtek RLT8111C 10 / 100 / 1000 Mbps or
Realtek RLT8102E 10 / 100 Mbps. Support PCIe |

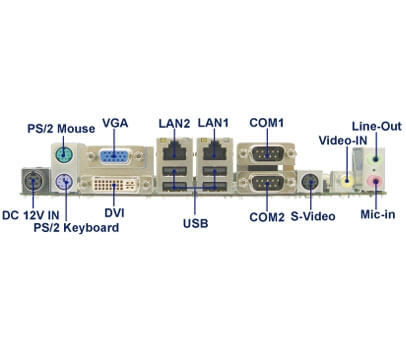

| IO Function |
2 x RS232
IrDA 1.0 / ASKIR protocol
PS/2 keyboard & mouse |
| USB |
8 x USB 2.0 ( 4 external + 4 internal ) |
| DVI |
Support DVI-D. Transmitter up to 165M pixels/sec. |
| Video-in |
1 Conexant CX23885 chip for 1 port Video-in |
Audio Amplifier
(option) |
Two channels Audio Amplifier
6W/CH Class-D operation into an 8-Ω Load from a 12-V Supply |
| TV-out |
Support all NTSC & PAL formats, S-Video out.
HDTV supports 480p / 720p / 1080i / 1080p |
Touch Screen
(option) |
USB interface Touch screen controller
Support 4-, 5-, 8- wire Analog Resistive Touch screen
USB 1.1 full speed sample rate maximum of 300 point / sec.
Resolution: 2048 x 2048 |
| DIO & WDT |
Hardware digital Input & Output, 8 x DI / 8 x DO
Hardware Watch Dog Timer, 0~255 sec programmable |
| Expansion Interface |
1 x Mini PCI socket
1 x PCI gold finger
( with RS007 / RS009 riser card upgrade to 2 x PCI card )
( with RS010 / RS011 Riser Card support PCIe x 1 interface )
1 x PCIe mini card for PCIe & USB interface |
| Power |
On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system |
| Dimension |
200 x 150 mm |
| Operation Temperature |
0 ~ 60 °C |
| Operation Humidity |
5 ~ 95% @ 60 °C, non-condensing |
| Expansion |
GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O |
| Chassis |
TWISTER, TINO |
