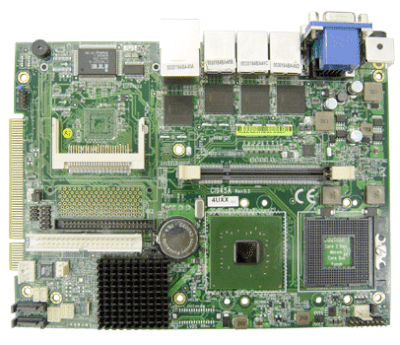

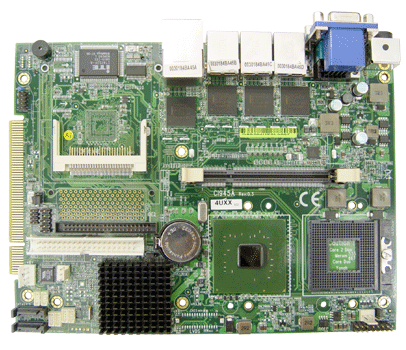

CI945A
Intel Core Duo / Core 2 Duo Features: CORE 2 DUO , 4 LAN , SATA , 2 PCMCIA , Mini PCI , PCI
Specifikace
| MODEL | CI945A |
| CPU Type | Intel Core 2 Duo / Core Duo CPU socket M |
| Front Side Bus | 533 / 667 MHz |
| MB Chipset | Intel 945 GME + ICH7M ( 82801 GBM ) |
| BIOS | Award BIOS |
| Graphics | Intel Gen 3.5 Integrated Graphics Engine Dynamic Video Memory Technology ( DVMT 3.0 ) Higher performance MPEG-2 decoding |
| LVDS (option) | Data format of 18 bits / 36 bits |
| System Memory | 1 x DDR2 SO-DIMM socket ( max. 2GB ) |
| IDE | Ultra ATA 100 / 66 / 33, 1 x 40 pin 2.54mm, 1 x 44 pin 2.0mm CF Card Type 2 socket for ATA interface |
| SATA | 2 x SATA ports |
| Audio | Intel HD Audio Specification Rev. 1.0 Compliant Support Line-out / Mic-in / Line-in |
| LAN | 4 x Realtek RLT8102E 10 / 100 Mbps or Intel 82573L 10 / 100 / 1000 Mbps. |
| IO Function | 1 x RS232 IrDA 1.0 / ASKIR protocol PS/2 keyboard & mouse |
| USB | 8 x USB 2.0 ( 2 external + 6 internal ) |
| DIO & WDT | Hardware digital Input & Output, 4 x DI / 4 x DO Hardware Watch Dog Timer, 0~255 sec programmable |
| Expansion Interface | 1 x Mini PCI socket 1 x PCI gold finger ( with RS007 / RS009 PCI Riser Card upgrade to 2 x PCI card ) |
| Power | On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system |
| Dimension | 200 x 150 mm |
| Operation Temperature | 0 ~ 60 °C |
| Operation Humidity | 5 ~ 95% @ 60 °C, non-condensing |
| Chassis | TWISTER, TINO |
