CI770C
Intel Mobile Ivy Bridge Processor rPGA988B socket, Intel® Core™ series
Specifikace
| MODEL | CI770C |
| CPU Type | Intel Mobile Ivy Bridge Processor rPGA988B socket, Intel® Core™ series |
| MB Chipset | Panther Point Platform Controller Hub ( PCH ) QM77 |
| Graphics | Integrated Display Engine, GPU of Intel Mobile Sandy Bridge Processor |
| LVDS | Data format for single / dual channel of 18 / 24 bits |
| System Memory | Dual Channel, Non ECC, 2 x DDR3 1333 SO-DIMM sockets ( max. 16GB ) |
| SATA | 4 x SATA ports ( 2 x SATA 2.0 and 2 x SATA 3.0 ) |
| HDMI | HDMI 1.3a ( Type A 19pin ) |
| DISPLAY Port (option) | Compatible with Display port 1.1a |
| Audio | Intel High Definition Audio Specification Rev.1.0 Compliant Supoort Line-out / Mic-in / Line-in |
| LAN | LAN1: QM77 integrated Giga LAN controller w/ Intel 82579LM Giga phy or Intel 82574L Giga LAN controller (option) LAN2: Intel 82574L Giga LAN controller |
| USB | 9 x USB 2.0 ( 4 external USB 3.0/2.0 + 5 internal USB 2.0 ) |
| IO Function | 5 x RS232 or 485/422 ( option ) + 1 x RS422/485/232 for CI770C-6C 5 x RS232 or 485/422 ( option ) + 4 x RS422/485 ( option ) + 1 x RS422/485/232 for CI770C-AC Support PS/2 key board & mouse |
| DVI | Support DVI-D. Transmitter up to 165M pixes/sec |
| Audio Amplifier | 6W/CH Class-D operation into an 8-Ω Load from a 12-V Supply |
| Touch Screen | USB / COM interface Touch screen controller Support 4-, 5-, 8- wire Analog Resistive touch screen USB 1.1 full speed sample rate maximum of 300 point per second |
| DIO & WDT | Hardware digital Input & Output, 8 x DI / 8 x DO Hardware Watch Dog Timer, 0~255 sec programmable |

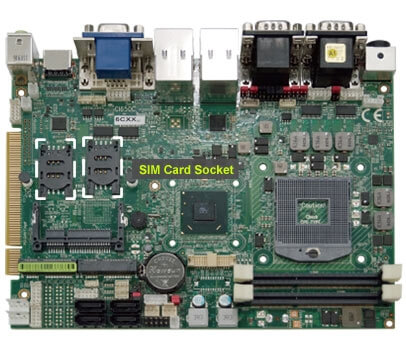

| Expansion Interface | 2 x PCIe mini card for PCIe & USB interface 2 x 3G SIM card sockets, 1 x PCI/PCIe Gold finger ( Support 1~2 x PCI slots by riser card RS221/RS222 ) (Support 1~2 x PCIe slots by riser card RS203/RS211/RS223 ) |
| Power | On board DC +12V±5% convert to +3V / +5V / +12V for system |
| Dimension | 200 x 150 mm |
| Operation Temperature | 0 ~ 60 °C |
| Operation Humidity | 5 ~ 95% @ 60 °C, non-condensing |
| Expansion | GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O |
| Chassis | 12~17" Panel PC Series |
