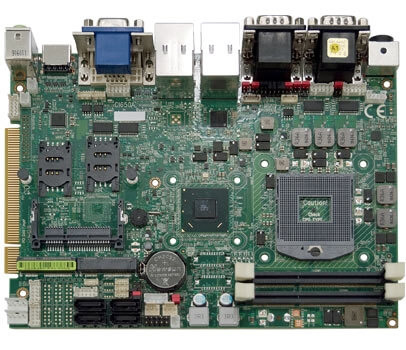

CPU Type Intel Mobile Sandy Bridge Processor rPGA988B socket, Intel® Core™ series
MB Chipset Panther Point Platform Controller Hub ( PCH ) QM77
Graphics Integrated Display Engine, GPU of Intel Mobile Sandy Bridge Processor
System Memory Dual Channel, Non ECC, 2 x DDR3 1333 SO-DIMM sockets ( max. 16GB )
NAND Flash Memory CFast Card Type I/II socket for SATA interface 2.0
SATA 4 x SATA ports ( 2 x SATA 2.0 and 2 x SATA 3.0 )

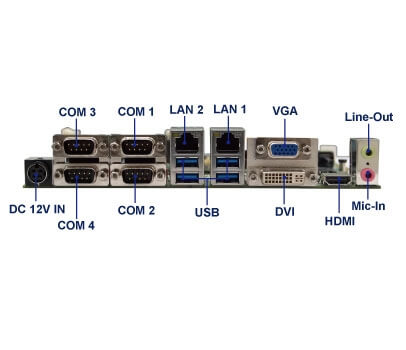

HDMI HDMI 1.3a ( Type A 19pin )
DISPLAY Port (option) Compatible with Display port 1.1a
Audio Intel High Definition Audio Specification Rev.1.0 Compliant
Supoort Line-out / Mic-in / Line-in
LAN LAN1: QM77 integrated Giga LAN controller
w/ Intel 82579LM Giga phy or Intel 82574L Giga LAN controller (option)
LAN2: Intel 82574L Giga LAN controller
USB 9 x USB 2.0 ( 4 external USB 3.0/2.0 + 5 internal USB 2.0 )
IO Function 5 x RS232 or 485/422 ( option ) + 1 x RS422/485/232
Support PS/2 key board & mouse
DVI Support DVI-D. Transmitter up to 165M pixes/sec
Audio Amplifier 6W/CH Class-D operation into an 8-Ω Load from a 12-V Supply
DIO & WDT Hardware digital Input & Output, 8 x DI / 8 x DO
Hardware Watch Dog Timer, 0~255 sec programmable
Expansion Interface 2 x PCIe mini card for PCIe & USB interface
2 x 3G SIM card sockets, 1 x PCI/PCIe Gold finger
( Support 2 x PCI slots by riser card RS201/RS202 )
( w/ RS010/RS011 riser card to support PCIex1 / Mini PCIe interface )
Power On board DC +12V±5% convert to +3V / +5V / +12V for system
Dimension 200 x 150 mm
Operation Temperature 0 ~ 60 °C
Operation Humidity 5 ~ 95% @ 60 °C, non-condensing
Expansion GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O
