CI270CW

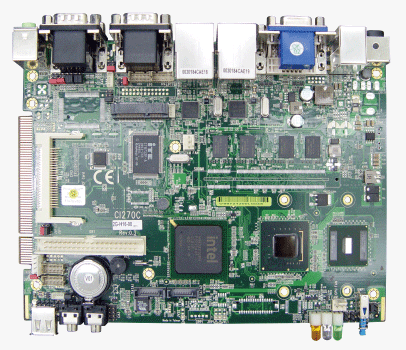

Jednodeskový počítač s procesorem Intel Atom N270 1.6 GHz

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Specifikace Fotogalerie Ke stažení

Specifikace

MODEL	CI270CW
CPU Type	Intel Atom N270 1.6 GHz processor
Front Side Bus	533 MHz
MB Chipset	Intel 945 GSE + ICH7M ( 82801 GBM )
BIOS	Award BIOS
Graphics	Integrated with Intel 945 GSE Dynamic Video Memory Technology ( DVMT 3.0 )
LVDS (option)	Data format of 18 bits

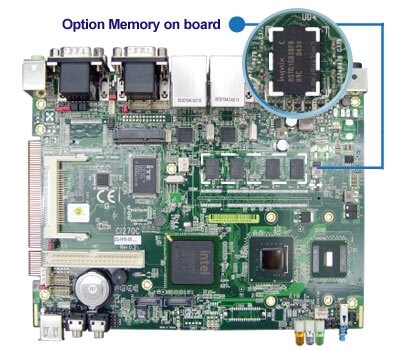

System Memory	On board DDR2 SDRAM 1GB 1 x DDR2 SO-DIMM socket ( max. 2GB ) ( option )

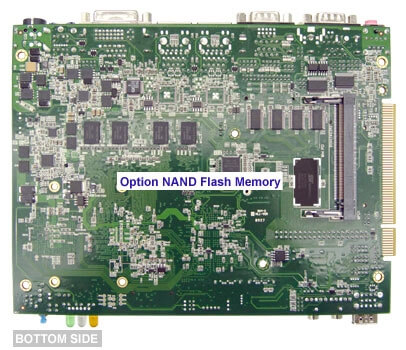

NAND Flash Memory	CF Card Type 2 socket for ATA interface On board SSD 2 / 4 / 8 GBytes ( option )
IDE	Ultra ATA 100 / 66 / 33, 1 x 40 pin 2.54mm
SATA	2 x SATA ports
Audio	Intel HD Audio Specification Rev. 1.0 Compliant Support Line-out / Mic-in / Line-in
LAN	2 x Intel 82574L or Realtek RLT8111C 10 / 100 / 1000 Mbps.
USB	8 x USB 2.0 ( 4 external + 4 internal )
IO Function	5 x RS232 or RS485 ( option ) + 1 RS422 / 485 or RS232 ( option )
DVI	Support DVI-D. Transmitter up to 165M pixels / sec.
Audio Amplifier (option)	Two channels Audio Amplifier 6W/CH Class-D operation into an 8-Ω Load from a 12-V Supply
Touch Screen (option)	USB interface Touch screen controller Support 4- , 5- , 8- wire Analog Resistive Touch screen USB 1.1 full speed sample rate maximum of 300 point / sec
DIO & WDT	Hardware digital Input & Output, 8 x DI / 8 x DO Hardware Watch Dog Timer, 0~255 sec programmable
Expansion Interface	1 x Mini PCI socket 1 x PCIe mini card for PCIe & USB interface 1 x PCI gold finger ( with RS007 / RS009 PCI Riser Card upgrade to 2 x PCI card ) ( with RS010 / RS011 Riser Card support PCIe x 1 interface)
Power	DC +12V ± 5% convert to +3.3V / +5V / +12V for system Wide range DC-IN from +6V to +36V ( option )
Dimension	200 x 150 mm
Operation Temperature	0 ~ 60 °C
Operation Humidity	5 ~ 95% @ 60 °C, non-condensing
