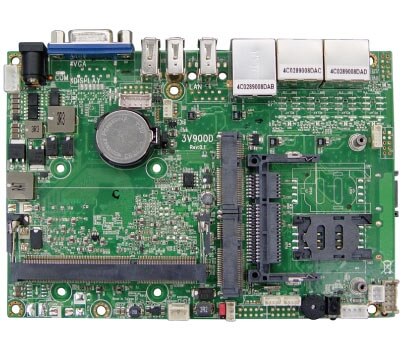

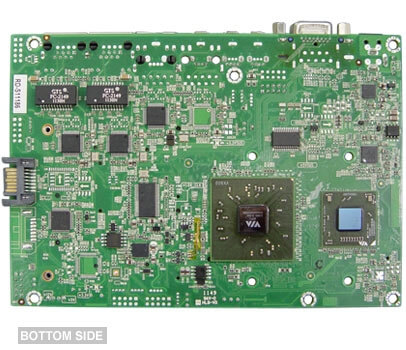

| MODEL |
3V900D-VGA3LAN |
| CPU Type |
VIA Nano E-series processor Nano 1GHz Single core |
| Front Side Bus |
800 MHz |
| MB Chipset |
VIA VX900 |
| BIOS |
Award BIOS |
| Graphics |
Integrated with VIA VX900
Shared system memory up to 512MB
MPEG-2/MPEG-4/VC1/WMV/H.264 decoding mode |
| System Memory |
1 x DDR3 1066MHz SDRAM (max. 4GB) |
| SATA |
Support 1 x SATA and 1 x CFast Card Type I/II or 2 x SATA (option) |
| Audio (option) |
VIA VT1708S HD Audio codec, Two channel SOUND
Support Line-out / Mic-in / Line-in |
| LAN |
3 x Realtek RLT 8111DL 10/100/1000 Mbps |

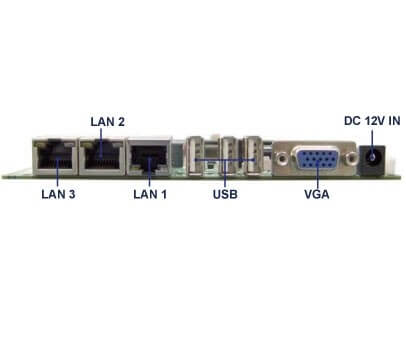

| IO Function |
COM1 RS232 or RS485 (option)
COM2 Wafer 5pin (TTL Level) |
| USB |
6 x USB 2.0 (3 external + 3 internal) |
| DIO (option) |
Hardware digital Input & Output, 8xDI / 8xDO |
| WDT |
Hardware Watch Dog Timer, 0~255 sec programmable |
| Expansion Interface |
2 x PCIe mini card for USB interface
1 x PCIe mini card for PCIe interface (option)
1 x mSATA (option) |
| Power |
On board DC +12V±5% convert to +3V/+5V/+12V for system |
| Dimension |
145 x 102 mm (3.5 inch) |
| Operation Temperature |
0 ~ 60 °C |
| Operation Humidity |
5 ~ 95% @ 60 °C, non-condensing |
| Expansion |
GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O |
| Chassis |
UNO, CUBE, BRIK 2,5", BRIK 3,5" |
