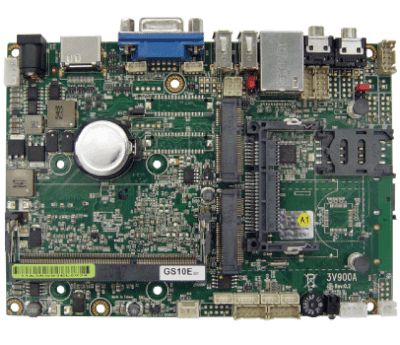

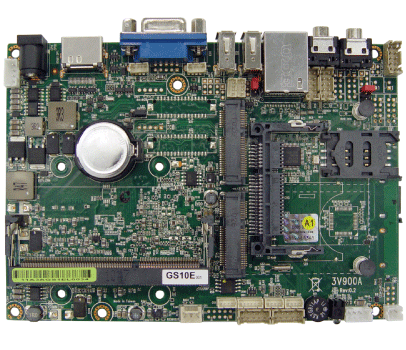

3V900A
Jednodeskový počítač s procesorem VIA Nano E-series; Nano 1GHz Single core
Specifikace
| MODEL | 3V900A |
| CPU Type | VIA Nano E-series processor Nano 1GHz Single core |
| Front Side Bus | 800 MHz |
| MB Chipset | VIA VX900 |
| BIOS | Award BIOS |
| Graphics | Integrated with VIA VX900 Shared system memory up to 512MB MPEG-2 / MPEG-4 / VC1 / WMV / H.264 decoding mode |
| System Memory | 1 x DDR3 1066MHz SDRAM ( max. 4GB ) |
| SATA | SATA and 1 x CFast Card Type I/II or 2 x SATA ( option ) |
| HDMI | Compatible with HDMI V 1.2 |
| DISPALY Port (option) | Compatible with Display port 1.1a |
| LAN | 1 x Realtek RLT 8111DL 10 / 100 / 1000 Mbps ( optional Intel 82574L GbE ) |
| IO Function | 2 x RS232 or RS485 ( optional ) Support PS/2 keyboard & mouse |
| USB | 6 x USB 2.0 ( 2 external + 4 internal ) |
| Audio | HD Audio codec; Two channel SOUND Support Line-out / Mic-in / Line-in SPDIF OUT ( optional ) |
| DIO & WDT | Hardware digital Input & Output, 8 x DI / 8 x DO Hardware Watch Dog Timer, 0~255 sec programmable |
| Audio Amplifier (option) |
Two channels Audio Amplifier 6W/CH Class-D operation into an 8-Ω Load from a 12-V Supply |
| Expansion Interface | 2 x PCIe mini card for PCIe & USB interface 3G SIM card socket |
| Power | On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system |
| Dimension | 145 x 102 mm ( 3.5 inch ) |
| Operation Temperature | 0 ~ 60 °C |
| Operation Humidity | 5 ~ 95% @ 60 °C, non-condensing |
| Expansion | GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O |
| Chassis | UNO, CUBE, BRIK 2,5", BRIK 3,5" |
