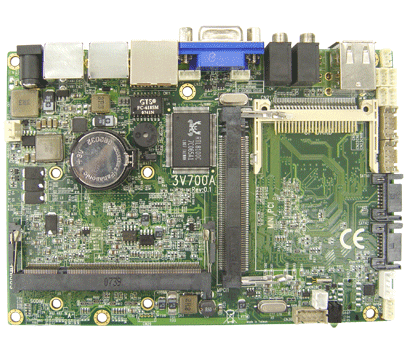

3V700A

Specifications:
. CPU type:
   VIA V4 Eden / ULV or C7 Nano-BGA2 400 pin L1 128 KB,
   L2 128KB on die
. Front Side Bus:
   400 / 533 MHz
. MB Chipset:
   VIA CN700 + VT8237R Plus
. Graphics:
   Integrated with VIA CN700
   Shared system memory up to 64MB
. Memory:
   1 x DDRII SODIMM (max. 1GB)
. SATA (option)::
   Supports 1 x SATA port. 2 x SATA ports (option)
. Audio:
   AC-Link for Audio codec. AC’97 2.1
. LAN:
   1 x Realtek RLT8100C 10 / 100 Mbps
. IO function(option):
   2 x RS232 (option)
   Support Infrared SIR & FIR
   PS/2 keyboard & mouse
. USB:
   8 x USB 2.0 (2 external + 6 internal)
. Audio Amplifier (option):
   6-W/CH Into an 8-Ω Load from a 12-V Supply
   Up to 92% Efficient, Class-D operation
   Differential Input minimizes Common-Mode noise
. TV-OUT (option):
   Supports all NTSC & PAL formats.
   Resolution : 1024 x 768
. DIO & WDT (option):
   Hardware digital Input & Output, 4 x DI / 4 x DO
   Hardware Watch Dog Timer, 0~255 sec programmable (option)
. Expand interface:
   1 x Mini PCI socket (option)
. Power:
   On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system
. Dimension:
   145 x 102 mm (3.5 inch)
. Operation Temp.:
   0 ~ 60°C
. Operation Humidity:
   5~95% @ 60°C, non-condensing

Testing environment:
Model name :
3V700A-1R10U/3V700A-1R50E
CPU :
VIA Eden ULV 1Ghz/VIA Eden 500Mhz
Chipset :
VIA CN700 & VIA VT8237R Plus
OS :
WIN XP
Testing Program :
3D Mark 2001 SE

Používá se v následujících šasi:
Šasi UNO
Šasi Brik2,5"
Šasi Brik 3,5"
