3I847NM/NX/D
Intel Ivy Bridge Celeron 1047UE 1.4 GHz ; Support i3 / i7 CPU
Specifikace
| MODEL | 3I847NM / 3I847NX / 3I847D | ||||
| CPU Type | Intel Ivy Bridge Celeron 1047UE 1.4 GHz ; Support i3 / i7 CPU | ||||
| MB Chipset | Intel Panther Point (PCH) HM76 | ||||
| BIOS | AMI BIOS | ||||
| Graphics | Intel Mobile Ivy Bridge 1047UE Processor Integrated Graphics DirectX* Video Acceleration (DXVA) support for accelerating video processing; Display Interface: CRT, HDMI & LVDS |
||||
| System Memory | On board DDR3 2GB / 4GB | ||||
| SATA | 2 x SATA ports | ||||
| Audio | High Definition Audio Specification, Support Line-out, Mic-in for 3I847NM/NX ; optional for 3I847D | ||||

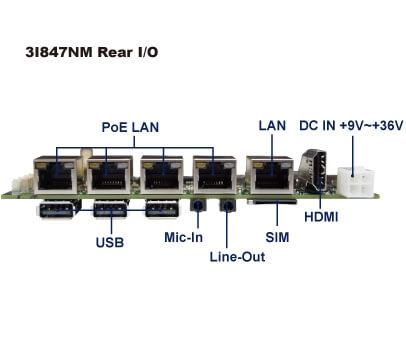

| LAN | 1 x Intel 10 / 100 / 1000 Mbps ; 4 x PoE LAN for 3I847NM/NX 5 x Intel GbE FOR 3I847D |
||||
| LVDS / Touch Screen | Dual Ch 18 / 24 Bit LVDS ; USB touch screen controller for 3I847NM/NX | ||||
| IO Function | 2 x RS232 ; option to RS422 or 485 | ||||
| USB |
|
||||
| HDMI | 1 x HDMI support resolution 1920 x 1200 | ||||
| SIM card | 1 x SIM card socket (Option to mini card PCIe) | ||||
| DIO & WDT | Hardware digital Input & Output,8 x DI / 8 x DO Hardware Watch Dog Timer, 0~255 sec programmable for 3I847NM / NX ; optional for 3I847D |
||||
| Expansion Interface | 2 x PCIe Mini card for PCIe by one and mSATA and USB interface | ||||
| Power | Wide Range DC IN +9V~+36V, CPC-Car Power Control for 3I847NM Wide Range DC IN +9V~+36V for 3I847NX, On board DC IN +12V for 3I847D |
||||
| Dimension | 145 x 102 mm (3.5 inch) | ||||
| Operation Temperature | -20°C ~ 60°C | ||||
| Operation Humidity | 5 ~ 95%, non-condensing | ||||
| Expansion | GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O | ||||
| Chassis | TWISTER, TWITTER, TWITTER-IO |
