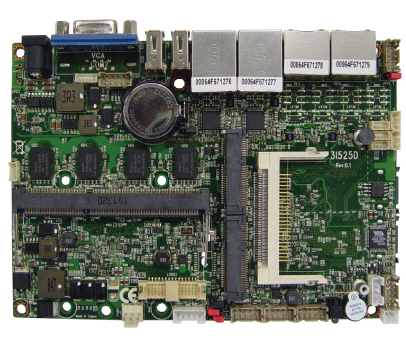

3I525D

Jednodeskový počítač s procesorem Intel Atom D525

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Features:

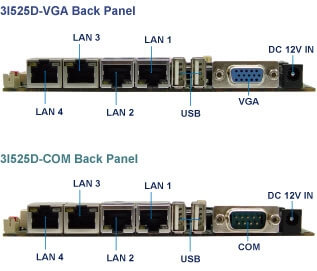

3.5 inch , Intel Atom D525 processor , 7 USB , LVDS , 2 SATA ,
NAND flash memory , 4 LAN , PCIe Mini card , SIM Card Socket

MODEL	3I525D
CPU Type	Intel Atom D525 1.8 GHz ( Dual core processor )
MB Chipset	Intel Atom D525 + ICH8M ( 82801 HBM )
BIOS	Award BIOS
Graphics	Intel Luna Pier Refresh Pineview-D Integrated Graphics Engine
LVDS (option)	Data format of 18 bits
System Memory	1 x DDR3 SO-DIMM socket ( max. 4GB ) or On board DDR3 SDRAM 1GB and 1 x DDR3 SO-DIMM socket ( max. 2 GB )
NAND Flash Memory	CF Card Type 2 socket for ATA interface On board SSD 2 / 4 / 8 GBytes ( option )
SATA	1 x SATA port ( SATA 2 for option )
Audio (option)	Intel HD Audio Specification Rev.1.0 Compliant
LAN	4 x Realtek RLT8111DL 10 / 100 / 1000 Mbps Support LAN Bypass function 100Mbps ( option )
IO Function	COM1 Wafer 5pin ( TTL Level ), 1 x RS232 ( 3I525D-C4G model only )
USB	7 x USB 2.0 ( 2 external + 5 internal )
Touch Screen (option)	USB interface Touch screen controller Supported 4- , 5- , 8- wire Analog Resistive touch screen Resolution : 2048 x 2048
DIO & WDT (option)	Hardware Digital Input Output, 8 x DI / 8 x DO Hardware Watch Dog Timer, 0~255 sec programmable
Expansion Interface	2 x PCIe mini card for PCIe & USB interface 3G SIM card socket
Power	On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system
Dimension	145 x 102 mm ( 3.5 inch )
Operation Temperature	0 ~ 60 °C
Operation Humidity	5 ~ 95% @ 60 °C, non-condensing
Expansion	GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O
Chassis	TWITTER, LEO, BRIK 2,5", BRIK 3,5"
