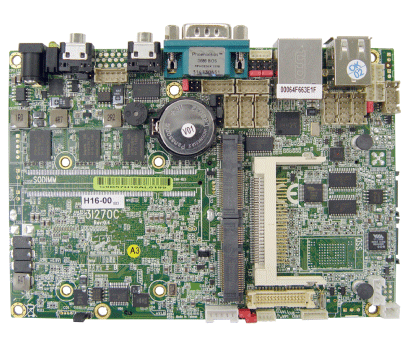

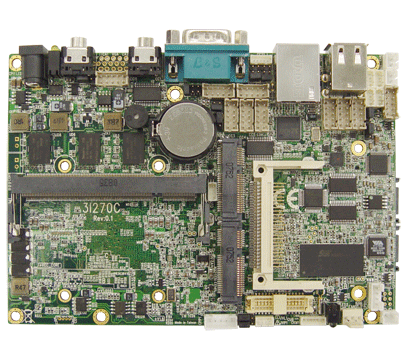

3I270C

Intel Atom N270 Features: 3.5 inch , Intel Atom , HD Audio , 6 COM , 2 SATA , NAND flash memory , 6W stereo audio amplifier

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Specifikace Fotogalerie Ke stažení

Specifikace

MODEL	3I270C
CPU Type	Intel Atom N270 1.6 GHz processor
Front Side Bus	533 MHz

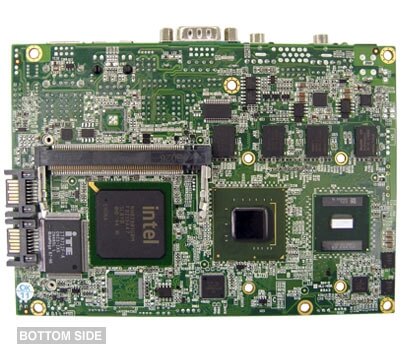

MB Chipset	Intel 945 GSE + ICH7M ( 82801 GBM )
BIOS	Award BIOS
Graphics	Integrated with Intel 945 GSE Dynamic Video Memory Technology ( DVMT 3.0 )
LVDS	LVDS1: 18 bits / LVDS1: 24/48 bits (option) 18 bits & 24/48 bits share the same LVDS connector, there’s only one possibility: 18 bits or 24/48 bits

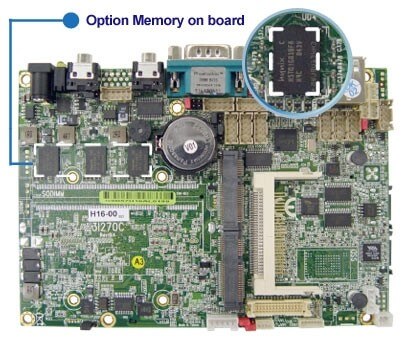

System Memory	On board DDR2 SDRAM 1GB 1 x DDR 2 SO-DIMM socket (max. 2GB) (option)
NAND Flash Memory	CF Card Type 2 socket for ATA interface On board SSD 2 / 4 / 8 GBytes ( option )
SATA	2 x SATA ports
Audio	Intel HD Audio Specification Rev. 1.0 Compliant Support Line-out / Mic-in / Line-in
LAN	1 x Realtek RLT8111C or Intel 82574L 10/100/1000 Mbps.
USB	7 x USB 2.0 ( 2 external + 5 internal )

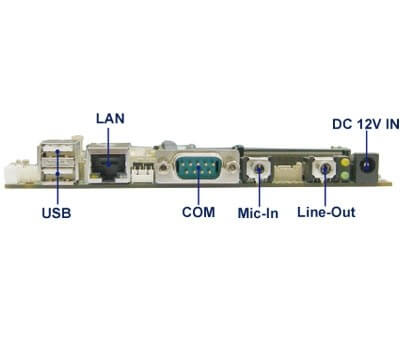

IO Function	5 x RS232 or RS485 ( option ) + 1 x RS422 / 485 or RS232 ( option ) Support PS/2 Keyboard & mouse
Audio Amplifier (option)	Two channels Audio Amplifier 6W/CH Class-D operation into an 8-Ω Load from a 12-V Supply
Touch Screen	USB interface Touch screen controller Support 4- , 5- , 8- wire Analog Resistive Touch screen USB 1.1full speed sample rate maximum of 300 point / sec. Resolution : 2048 x 2048
DIO & WDT	Hardware digital Input & Output, 8 x DI / 8 x DO Hardware Watch Dog Timer, 0~255 sec programmable
Expansion Interface	1 x Mini PCI socket 2 x PCIe mini card for PCIe & USB interface
Power	On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system
Dimension	145 x 102 mm ( 3.5 inch )
Operation Temperature	0 ~ 60 °C
Operation Humidity	5 ~ 95% @ 60 °C, non-condensing

Fotogalerie

Zobrazit všechny fotky

Ke stažení

Datasheet Lexcom 3I270C
