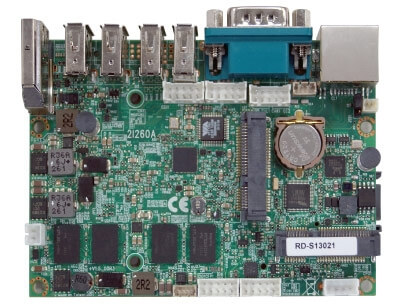

2I260A-CH26 Series
Jednodeskový počítač s procesorem Intel Cedarview-M N2600 1.6GHz (Dual core procesor) TDP 3.5W
Specifikace
| MODEL | 2I260A-CH26 |
| CPU Type | Intel Cedarview-M N2600 1.6GHz (Dual core processor) TDP 3.5W |
| MB Chipset | Intel Cedarview-M and NM10 |
| BIOS | Award BIOS |
| Graphics | Intel Cedarview-M Integrated Graphics chipset,N2600 400 MHz render clock frequency Support Directx* 10.1 compliant Pixel Shader* v2.0 and OGL 3.0, Display Ports: HDMI or DVI, CRT |
| System Memory | On board DDR3 SDRAM 2GB, N2600 Memory DDR3 data transfer rate of 800MT/s |
| NAND flash memory | On board SSD 2/4/8/16/32/64 GBytes (Option) |
| SATA | One SATA port with independent DMA operation supported mSATA share with mini PCIe (Option) |
| Audio | Intel High Definition Audio Specification, Support Line-out(external); Mic-in(internal) |
| LAN | 1 x Realtek RTL8111F 10 / 100 / 1000 Mbps |

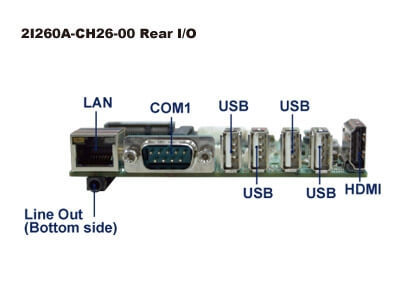

| IO Function | 1 x RS232 or 422/485(on board) optional with VGA port 1 x RS232 or 422/485 (internal) |
| USB | 5 x USB 2.0 (4 external + 1 internal) |
| DVI | N/A |
| HDMI | 1 x HDMI support resolution up to 1920 x 1200 |
| DIO & WDT | Hardware digital Input & Output, 4 x DI / 4 x DO (Option) Hardware Watch Dog Timer, 0~255 sec programmable (Option) |
| Expansion Interface | One 3G SIM card socket (Option) |
| Power | On board DC +12V |
| Dimension | 102 x 73 mm (2.5 inch) |
| Operation Temperature | 0 ~ 60 °C |
| Operation Humidity | 5 ~ 95%, non-condensing |
| Expansion | GPS, IEEE1394, 3G, Bluetooth, WI-FI, I/O |
| Chassis | ANT, UNO, TWIN |
